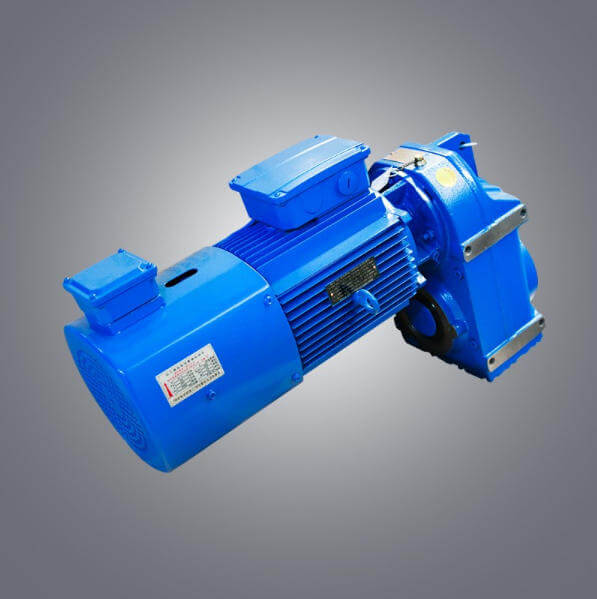

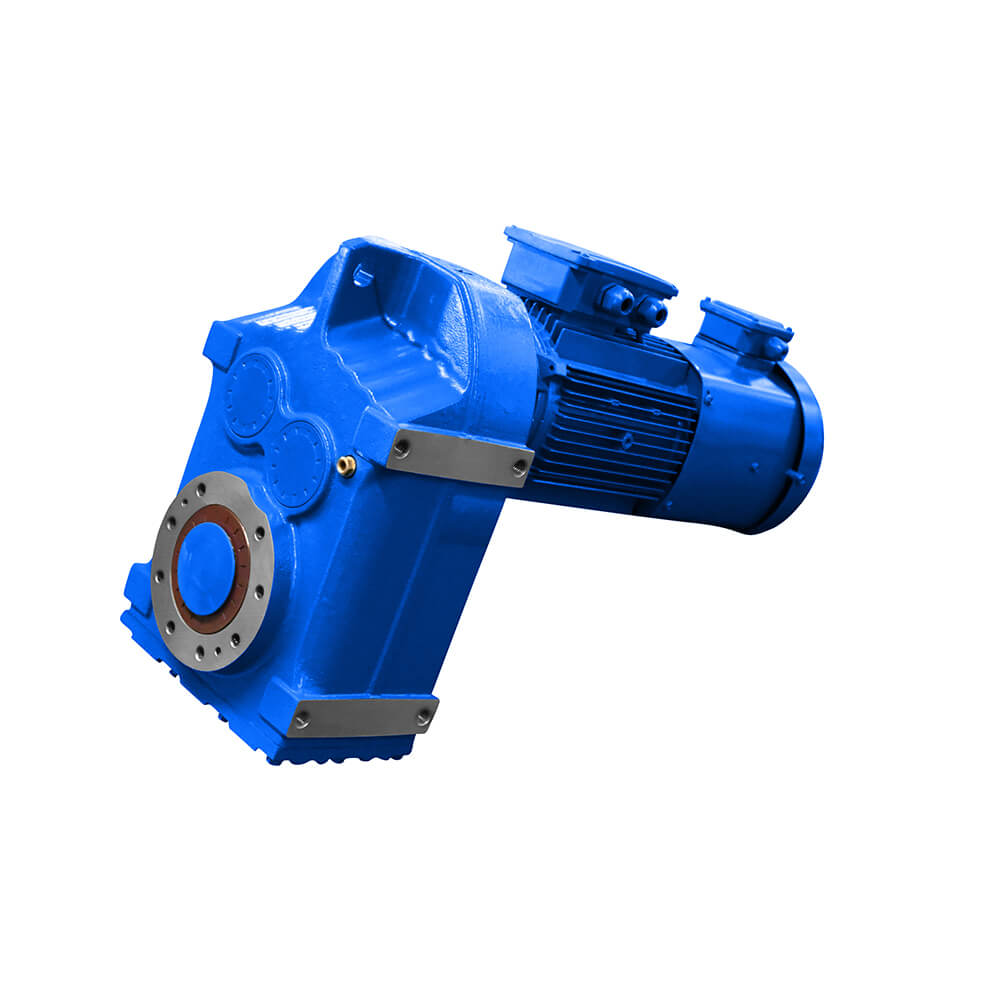

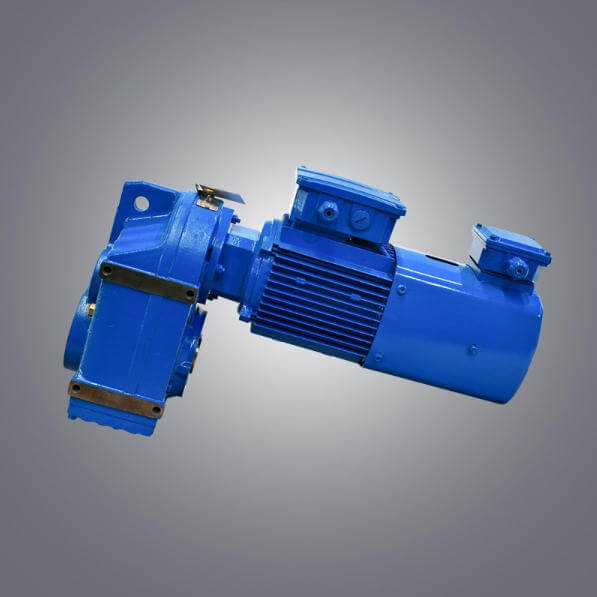

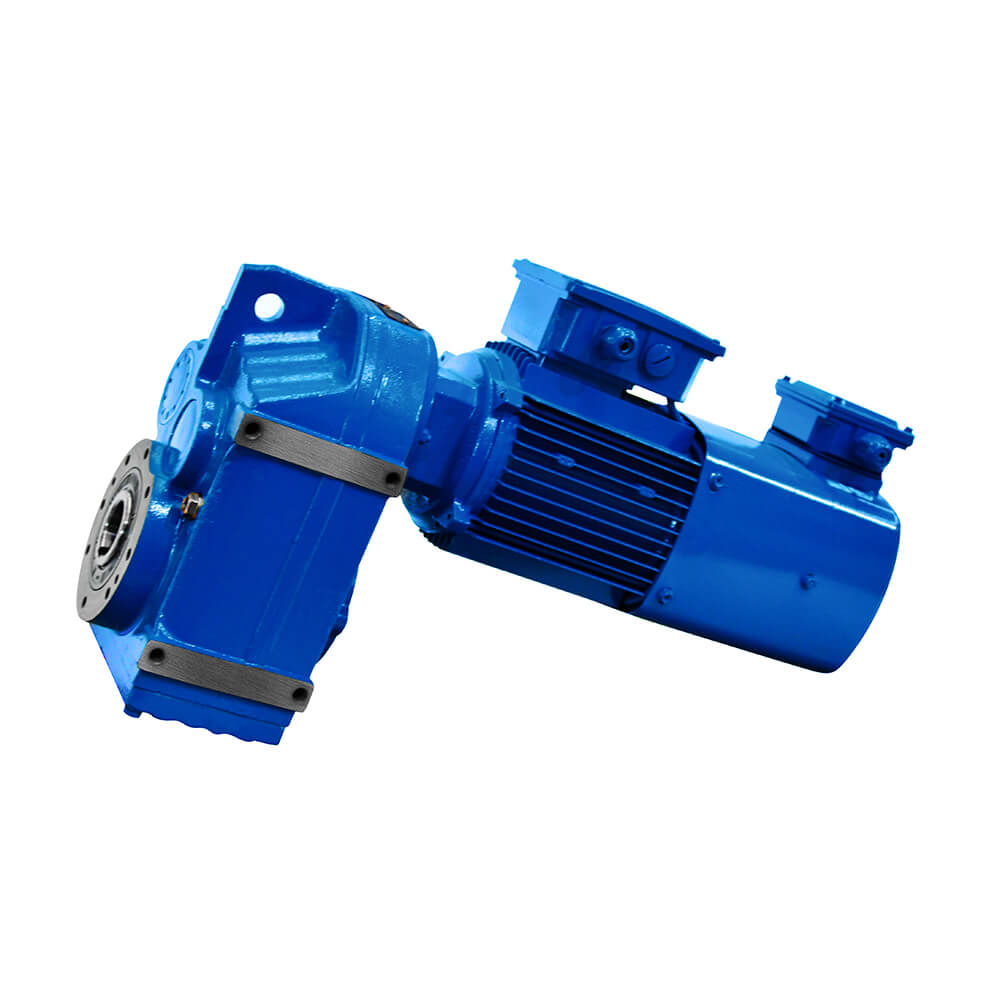

F Series Parallel Shaft Helical Gear Motors
Description
The F Series Parallel Shaft Helical Gear Motors are distinguished by their parallel shaft output and helical gear transmission. Their modular design allows for easy integration with a variety of motors, such as standard AC motors and servo motors, to achieve parallel shaft power transmission. Optimized for space-saving installation, these motors deliver powerful power within a compact housing. Rated torques range from 130 to 18,000 Nm, and power ratings from 0.12 to 200 kW, meeting the power transmission needs of various industrial scenarios.
Technical Features
The F Series gear motors are widely used in numerous industries due to their outstanding features:
Space-saving and powerful: Their compact design makes them particularly suitable for installations with limited space. Their housings are typically constructed of high-strength cast iron, ensuring stable operation under heavy loads.
High Performance and Long Life: Their gears are often made of high-quality alloy steel (such as 20CrMnTi) and undergo heat treatment processes such as carburizing and quenching to achieve high tooth surface hardness and excellent wear resistance. The gears are precision-ground to high accuracy, ensuring smooth, low-noise transmission and achieving a transmission efficiency exceeding 95%.
Flexible installation and wide application: Available in various mounting options, including foot mounting, flange mounting, and hollow shaft mounting, to accommodate diverse installation requirements. Some models also offer low-backlash versions for precise positioning control.
Main Applications
The F series gear motors, with their compact design, high efficiency, and wide torque range, are suitable for nearly every industrial application, including:
Conveyor systems: such as chain conveyors, belt conveyors, screw conveyors, and automated warehousing equipment.
Manufacturing: Used in presses, extruders, mixers, and production lines in the food, chemical, and pharmaceutical industries.
Lifting and handling: Commonly used in gantry cranes, construction machinery, and steel and metallurgical equipment.
