The TQ-Q50 and TQ-Q100 professional, high-precision benchtop device designed specifically for testing the pull-out force of wire harness terminals. With its compact desktop design, it accurately measures terminal retention force within a range of ≤50KG and ≤100KG, achieving a precision of ±0.04KG.
TQ Series Wire Harness Terminal Pull Force Tester
PRODUCT DESCRIPTION

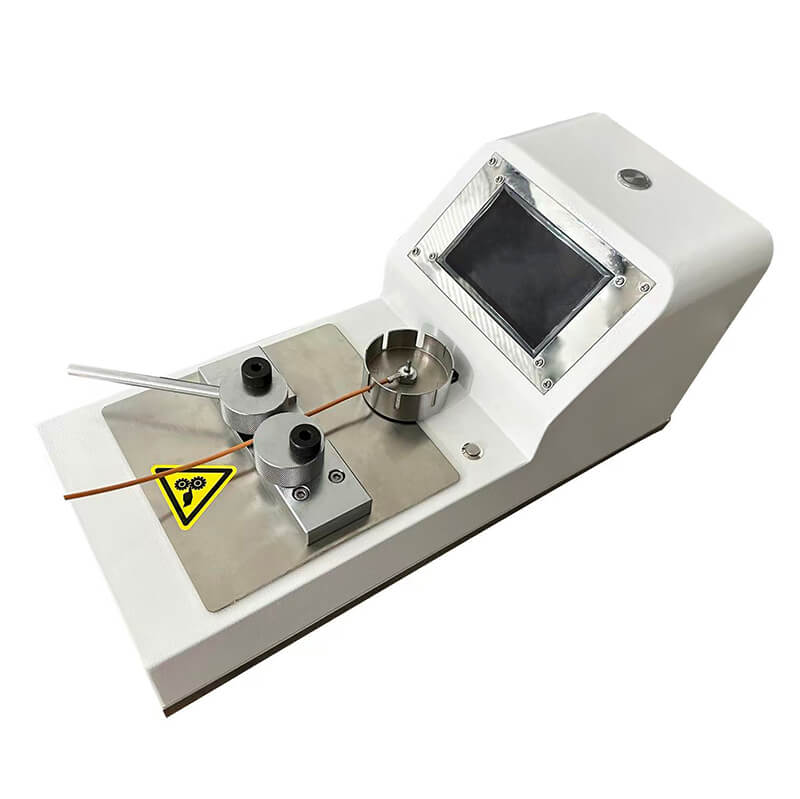

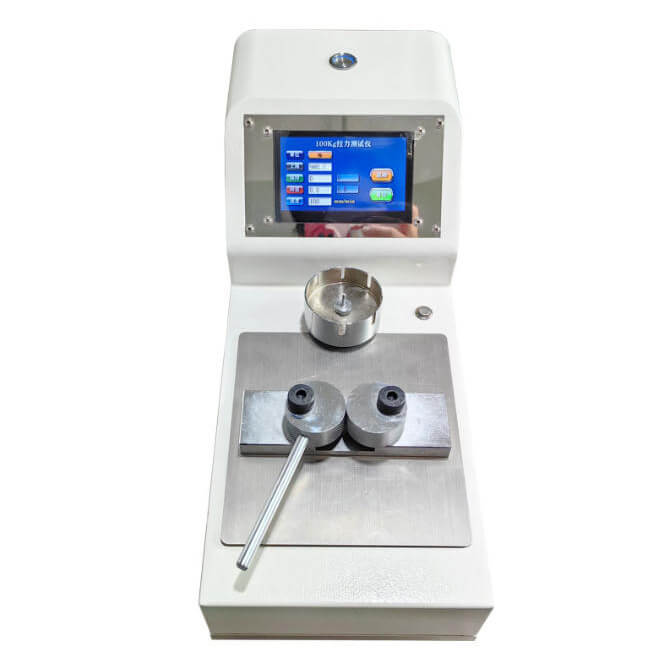

The TQ-Q50 and TQ-Q100 professional, high-precision benchtop device designed specifically for testing the pull-out force of wire harness terminals. With its compact desktop design, it accurately measures terminal retention force within a range of ≤50KG and ≤100KG, achieving a precision of ±0.04KG. It is an essential quality control tool for ensuring the reliability of wire harness connections, suitable for quality inspection and R&D testing in electronics manufacturing, automotive wiring harness, and connector industries.
FEATURES
High-Precision Measurement: Utilizes a precision sensor with a measurement accuracy of up to ±0.04KG (±0.39N), ensuring reliable and accurate test data.
Compact & Portable: The unit measures only 430*180*210mm and weighs approximately 10Kg. Its lightweight and compact structure allows for flexible placement on production lines or lab benches.
Easy Operation: Focused functionality with an intuitive interface enables quick pull force testing, improving quality inspection efficiency.
Safe & Stable Operation: Operates on AC220V with a low rated power of only 0.1KW, ensuring stable performance and low energy consumption.
TECHNICAL SPECIFICATIONS
Model | TQ-Q50 | TQ-Q100 |
Dimensions | 430x180x210mm | 430x180x210mm |
Weight | 10 kg | 10 kg |
Power supply | AC220V 50Hz | AC220V 50Hz |
Rated Power | 0.1KW | 0.1KW |
Core Function | Terminal Pull Force Testing | Terminal Pull Force Testing |
Measurement Range | ≤ 50 KG | ≤ 100 KG |
Accuracy | ±0.04 KG | ±0.04 KG |
