TC-F160V automatic crimping machine integrates wire stripping,twisting & ferrule crimping. Pneumatic-electric drive, 0.5-16mm ² ferrule crimping, ≤30mm strip length,terminal detection for efficient wire harness processing.

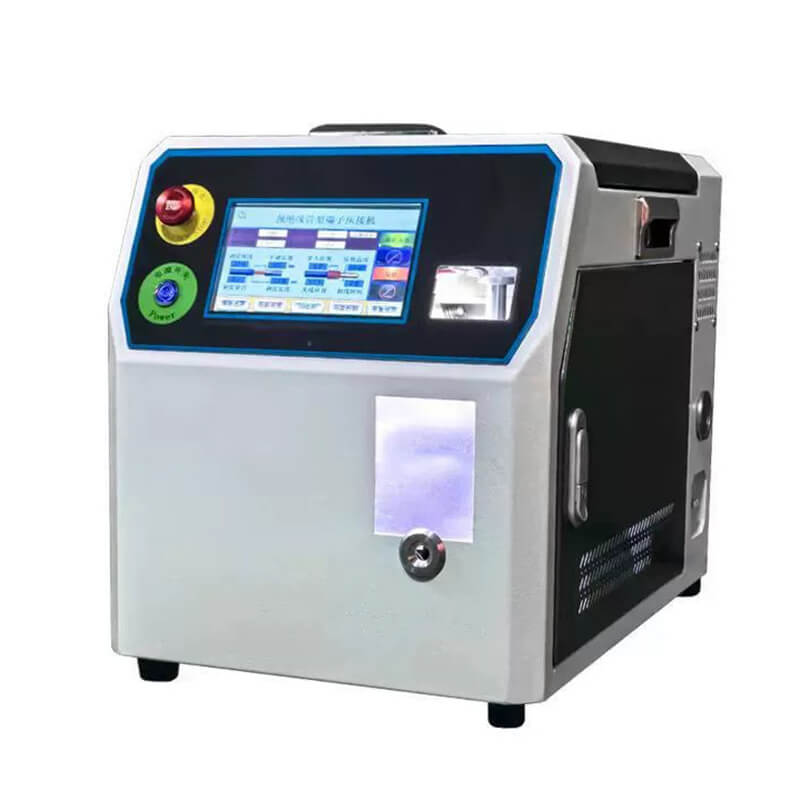

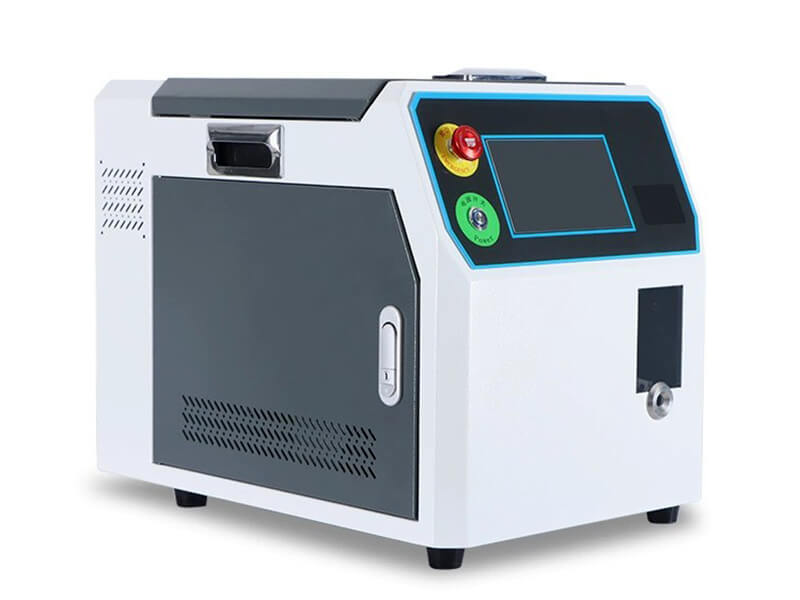

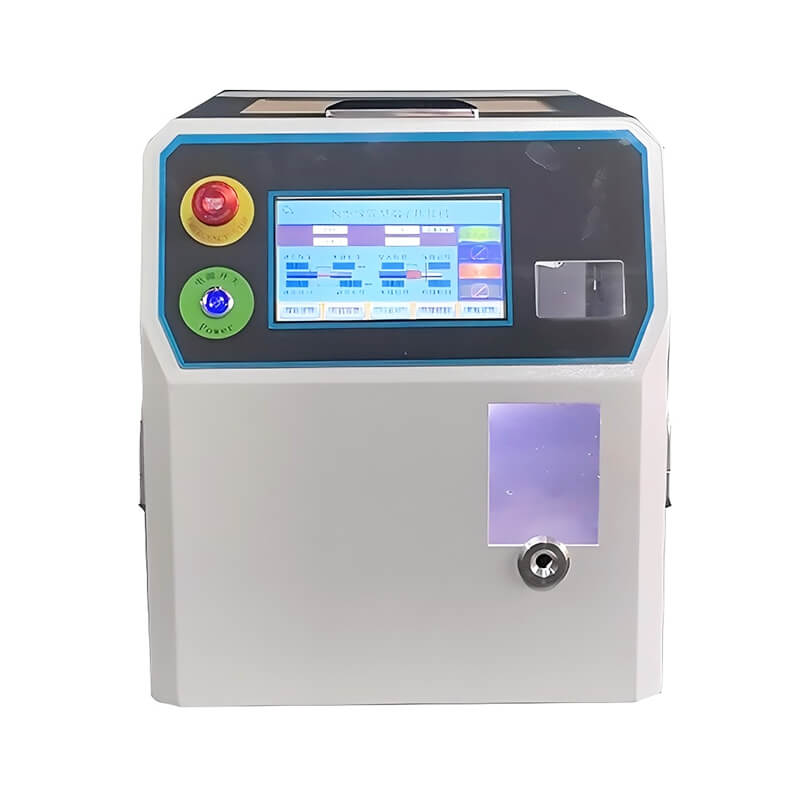

TC-F160V Wire Stripping and Ferrule Crimping Machine
PRODUCT DESCRIPTION
This is a semi-automatic crimping machine for pre-insulated ferrule terminals, featuring easy operation, high efficiency, stable performance and excellent cost-effectiveness. It realizes an all-in-one workflow: automatic vibratory bowl feeding, electric wire clamping, electric stripping, electric twisting, terminal inserting and servo crimping.
PRODUCT FEATURES
l Diversified Drive System: Mainly driven by electric power with pneumatic assistance, offering flexible and diverse power configuration.
l Compact & Safe Design: Fully enclosed appearance with compact mechanical structure, flexible operation and reliable safety protection.
l Convenient Startup Modes: Supports wire-feeding induction automatic trigger, and optional foot pedal switch for manual startup.
l Intelligent Feeding System: Automatic vibratory bowl feeding eliminates manual terminal placement; no need to replace the guide rail when changing terminals, only adjust the rail size.
l Highly Adaptable Jigs: Equipped with multi-spec jigs and blanking conduits, enabling quick adaptation to different terminal specifications with simple and fast jig replacement.
l User-friendly Interface: Intuitive touchscreen interface, easy to master with simple training; parameters can be stored and recalled, boosting production efficiency during product changeover.
l Efficient All-in-one Workflow: Integrates feeding, stripping, twisting, terminal inserting and crimping, significantly shortening the processing cycle per terminal and improving overall productivity.
TECHNICAL SPECIFICATIONS
Model | TC-F160V |
Applicable Wires | RV/BVR flexible wires, 10 specifications from 0.3 to 16 mm² (custom jigs required for wires below 0.5 mm²) |
Terminal Specifications | 0.3 (custom) to 16 mm²; terminal insulator length ≤11mm, conductor length ≤20mm |
Stripping & Insertion | Stripping length 6-30mm, insertion position into the shell is motor-adjustable and controllable, replacing the original mechanical limit adjustment |
Stripping Methods | Rotary stripping, parallel stripping, rotary twisting, direction reversible (forward/reverse) |
Terminal Feeding | Vibratory bowl feeding, one bowl compatible with 10 types of terminals, adaptable with simple adjustments |
Crimping Method | Square quadrilateral crimping, servo motor drive, crimping height/size adjustable; custom crimping dies available |
Product Changeover | Manual replacement of relevant jigs, adjustment of vibratory bowl, quick switch via recalled memory parameters |
Production Capacity | Approx. 3.2s per terminal (machine single cycle); approx. 4s per terminal during manual operation (varies by wire) |
Detection & Alarm | Terminal presence detection; Various operation status detections |
Power Supply | AC220V/50Hz (single phase); Total power 1500W |
Air Supply | 0.5-0.6MPa |
Dimension | W360mm × L520mm × H425mm (excluding protrusions) |
Net Weight | Approx. 62KG |
