AC-100SM Metal Material Cutting Machine

PRODUCT DESCRIPTION

The AC-100SM Automatic Cutting Machine employs a dedicated motion control system to deliver precise and stable fixed-length cutting for a wide variety of industrial materials. Driven by a high-speed stepper motor, it ensures accurate cutting length control, with adjustable feed length and speed to meet efficient, high-precision production demands.

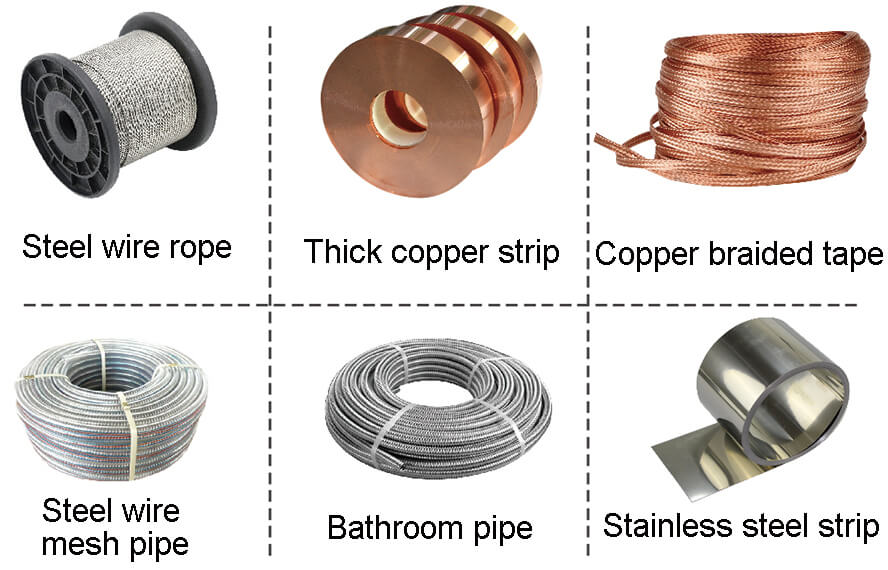

The AC-100SM model is a dedicated type for steel wire ropes and metal materials, featuring an imported high-power motor with extremely strong force. It is particularly suitable for difficult-to-cut materials such as metal materials, steel wire ropes, thick copper strips, copper braided strips, and steel wire mesh pipes.

FEATURES

1. Adopts the internationally advanced ARM control system, featuring high integration, fast computing speed and extremely strong stability. It leads the industry by several decades and is globally applicable.

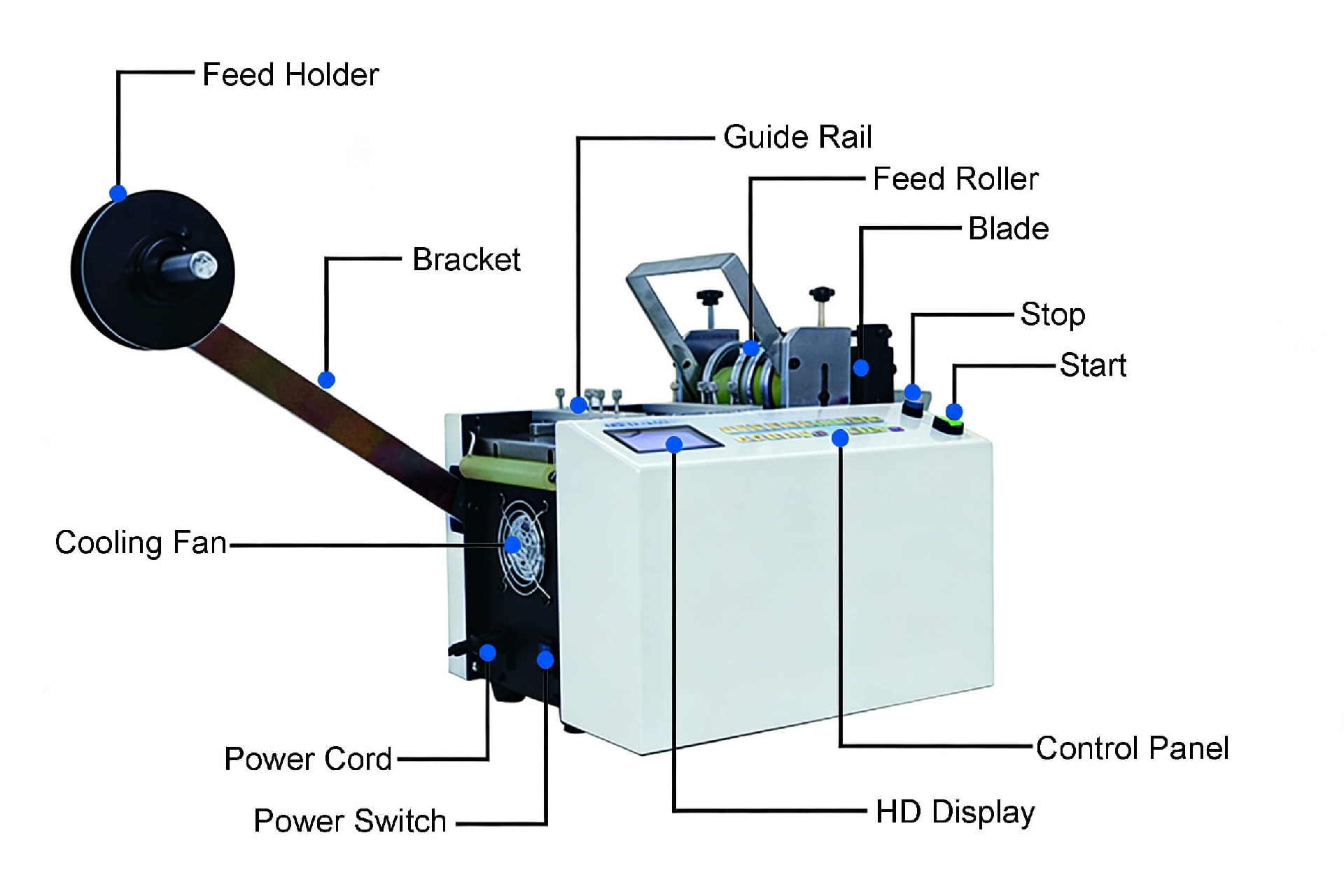

2. Features a high-definition LED display for clear visibility of batch pause, length compensation, one-key reset, and other functions, ensuring simple and convenient operation.

3. Reset Function: Restores the machine to factory settings with a single key, eliminating worries about operational errors disrupting the system.

4. Compensation Function: Allows adjustment to increase or decrease the cut length to meet standard dimensions when there is a discrepancy between the cut and actual sizes.

5. Includes various manual operations such as total quantity setting, batch setting, and adjustable batch pause time for convenient debugging.

TECHNICAL SPECIFICATIONS
