HS-2000L electric instant heat shrink heater for wire harness, 3-6s fast shrink, 100-600℃ adjustable temp, fits PE/PVC/adhesive-lined heat shrink tubes, supports 24h non-stop operation.

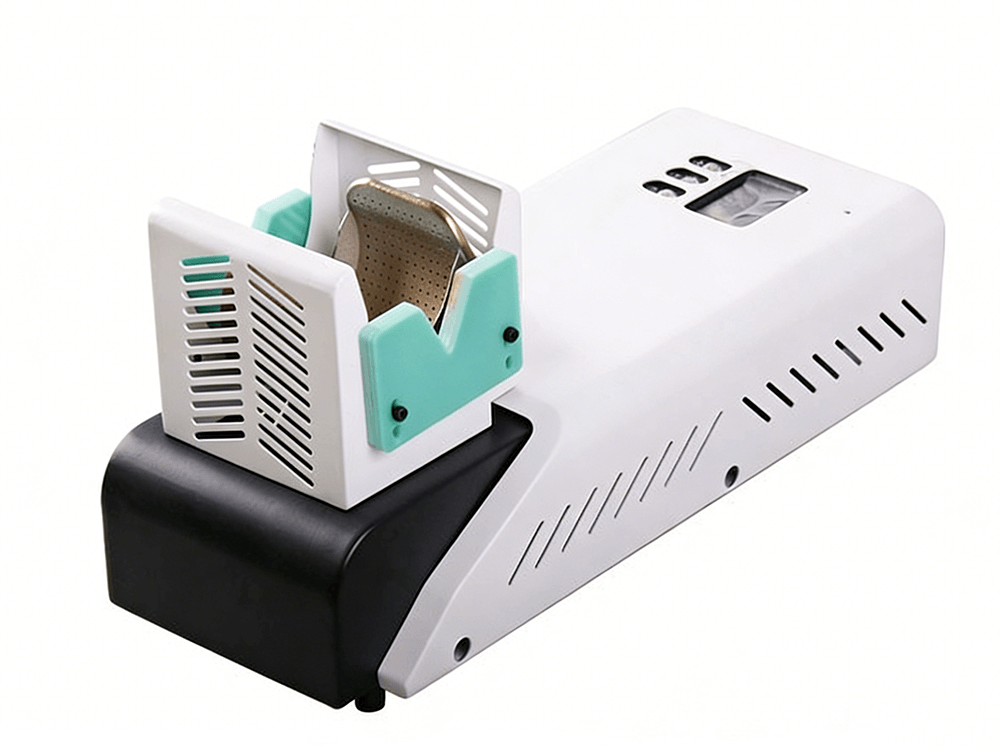

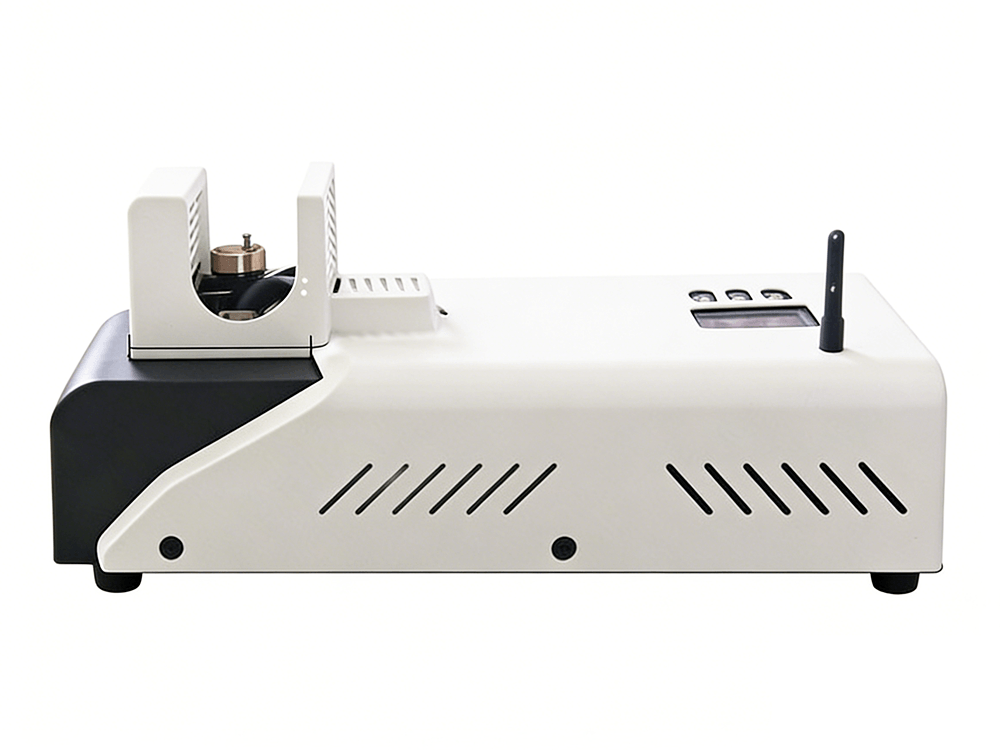

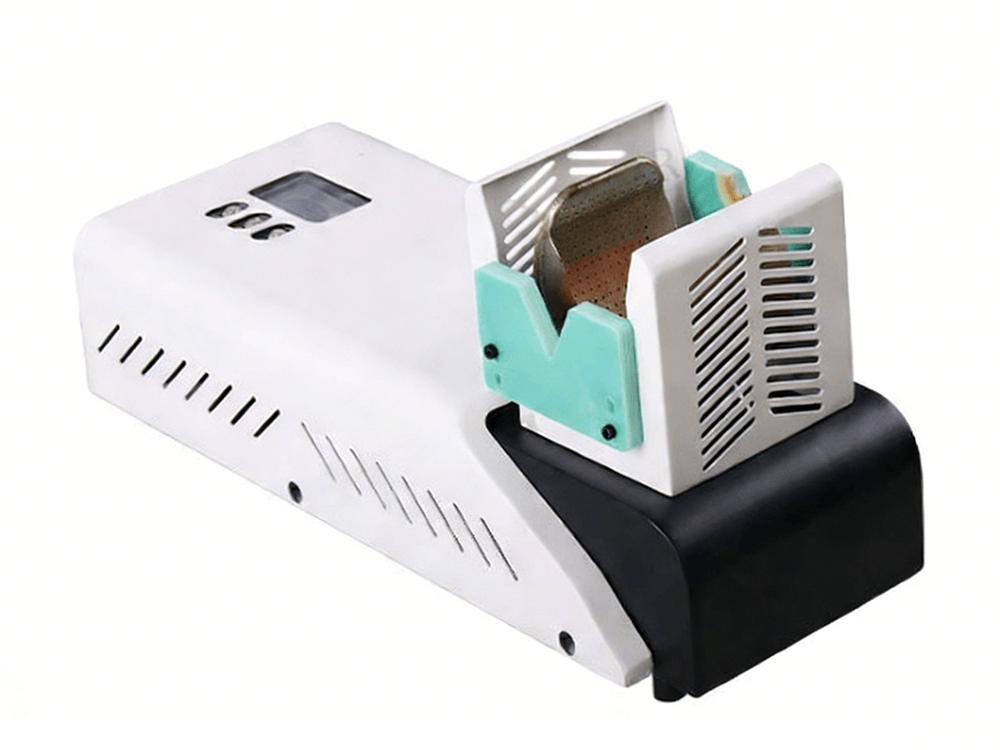

HS-2000L Instant Heat Shrink Heater
PRODUCT DESCRIPTION
A professional rapid heating device for heat shrink tubes, specially developed for the wire harness processing industry. Driven purely by electricity without the need for an air source, it can complete the shrinkage and shaping of various heat shrink tubes (PE, PVC, adhesive-lined double-wall, etc.) in just 3-6 seconds.
It supports installation on production lines or flexible mobile use. Equipped with precise temperature control, high-efficiency heat exchange, and safe anti-scald design, it can operate continuously for 24 hours, making it an ideal choice to replace traditional hot air guns and improve wire harness processing efficiency.
PRODUCT FEATURES

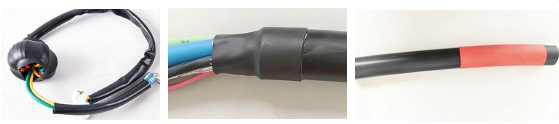

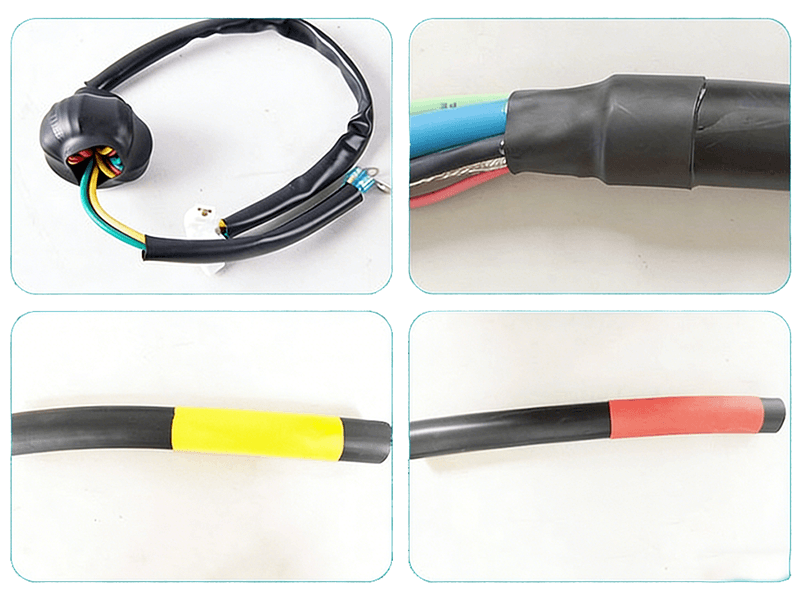

1. Wide Compatibility: Suitable for various heat shrink products including PE heat shrink tubes, PVC heat shrink tubes, and adhesive-lined double-wall heat shrink tubes. It can heat heat shrink tubes of any size and can be installed on production lines.
2. Precise Temperature Adjustment: Equipped with a temperature sensor at the air outlet, with a temperature control accuracy of ±℃. The operating temperature is adjustable from 100℃ to 600℃ (customizable up to 800℃) to meet precise production process requirements.
3. Flexible Air Outlet Design: The air outlet can blow hot air upward or downward, ensuring convenient operation for different working scenarios.
4. High Heat Exchange Efficiency: Featuring an ingenious air tunnel design, air flows evenly through the inner and outer sides of the spiral heating wire, achieving nearly 100% heat exchange efficiency with minimal air pressure loss and low flow rate, maximizing heat utilization.
5. Ultra-fast & Efficient: Rapid heating and heat shrink completion in 3-6 seconds, safe and anti-scald, with 2-3 times higher efficiency than similar products, low failure rate, energy saving and environmental protection.
6. Stable & Durable: Instant heating, supports 24-hour uninterrupted operation. Compact and lightweight for easy movement, with high thermal efficiency and long service life.
TECHNICAL SPECIFICATIONS
Model | HS-2000L |
Product Function | Rapid heat shrink and baking |
Power Supply | AC220V/50Hz |
Max. Power | 2kW at startup approx. 0.5kW at constant temperature |
Temperature Range | 100-600℃ adjustable; customizable up to 800℃ |
Max Air Volume | 24L/MIN |
Air Flow Level | 6-200 adjustable |
Wind Speed | 0.5-5M/S adjustable |
Air Outlet Size | U-type: 54mm (width) × 64mm (length) (customizable size as per customer requirements) |
Air Outlet Direction | Horizontal air outlet facing upward |
Applicable Sleeve Length | 15-30mm |
Device Power | 1500W |
