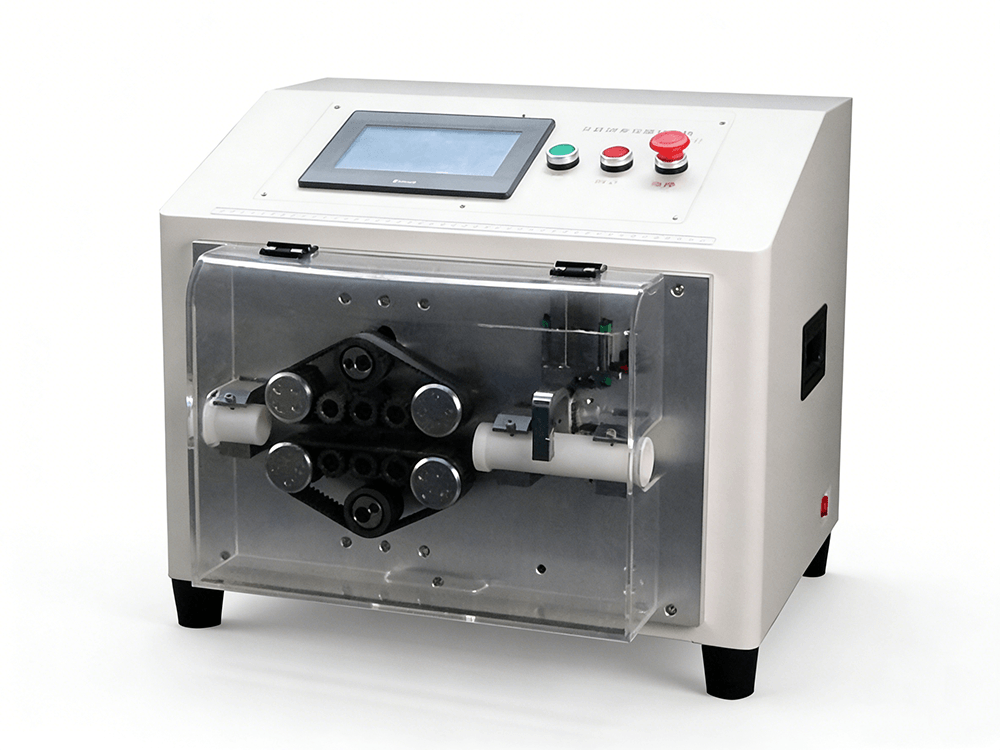

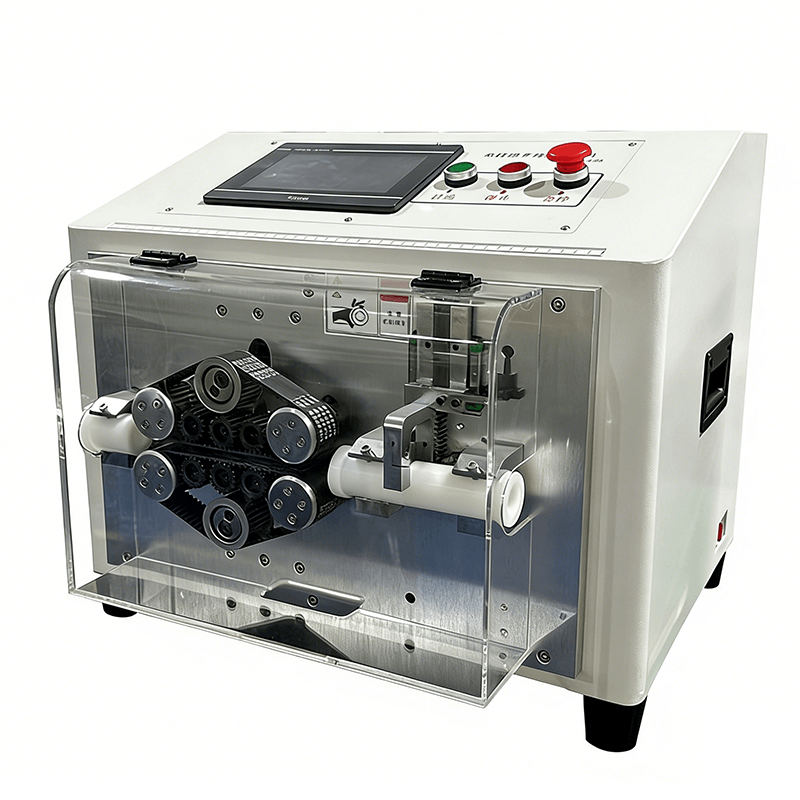

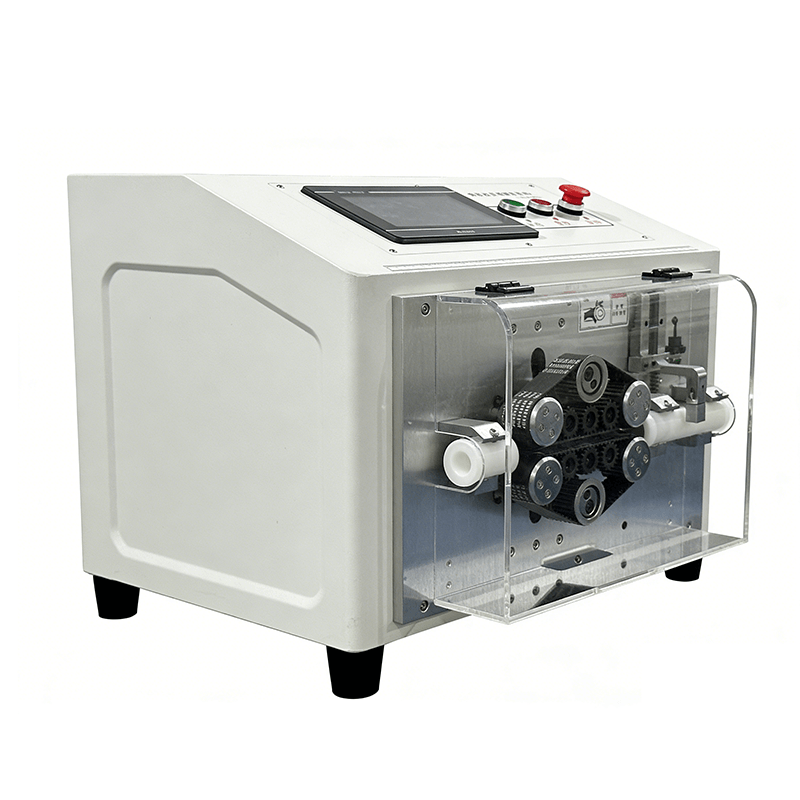

AC-325 Automatic Tube Cutting Machine

PRODUCT DESCRIPTION

The AC-325 is a high-performance, fully automatic tube cutting machine. Driven by a high-efficiency motor and a 10-roller track-type feeding system, it ensures fast, precise feeding without damaging the tube surface. Equipped with a 7-inch color touchscreen and an intelligent CNC system, it offers intuitive operation and delivers burr-free precision cutting for various tubes ranging from φ3mm to φ25mm, making it a reliable solution for improving tubing processing efficiency and quality.

PRODUCT FEATURES

1. Non-Marring Precision Cutting: The 10-roller track-type feeding system distributes pressure evenly, effectively preventing surface indentation or deformation on tubes, and ensures smooth, vertical cut faces.

2. Intelligent & Stable Control: Utilizes a hybrid stepper motor and a high-speed microprocessor with integrated circuit control for smooth operation and low failure rates. The system automatically adjusts cutting pressure for different tubing materials.

3. Efficient & User-Friendly Operation: The 7-inch color touchscreen provides a clear HMI and supports 00-99 program storage. Features like automatic tube in/out, timed start, and jog adjustment facilitate quick tube changes and easy setup.

4. Automotive Industry Focus: Optimized for cutting automotive wiring harness conduits, fuel lines, as well as PVC, silicone, and rubber tubes, meeting the high standards of automotive manufacturing.

5. Safe & High-Output Production: Incorporates strict safety protections. With a theoretical capacity of approximately 7,000 cuts per hour and 0.01mm-level feeding accuracy, it enables highly efficient output in a safe environment.

TECHNICAL SPECIFICATIONS
