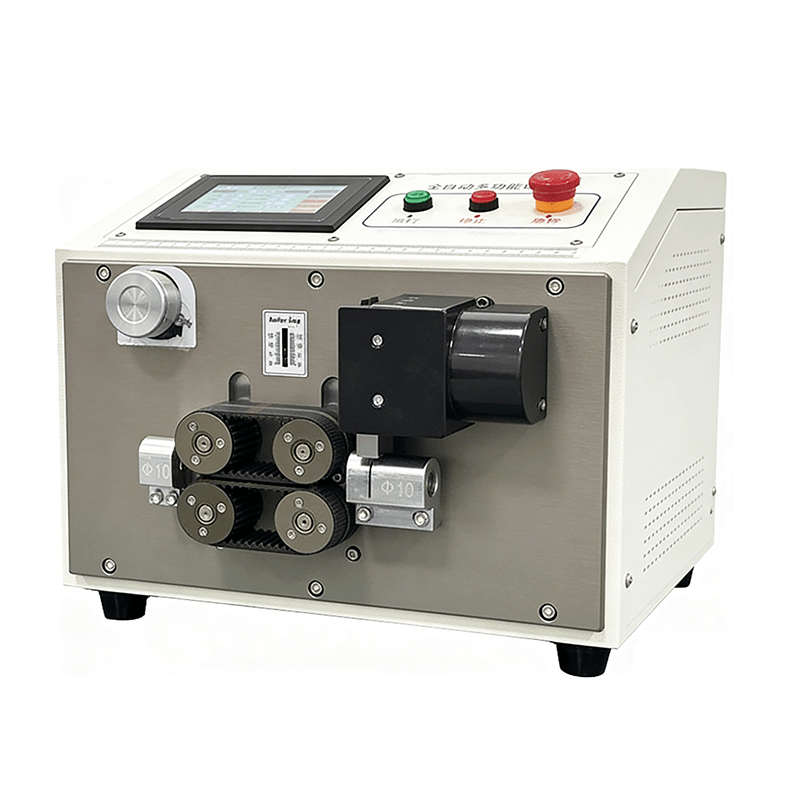

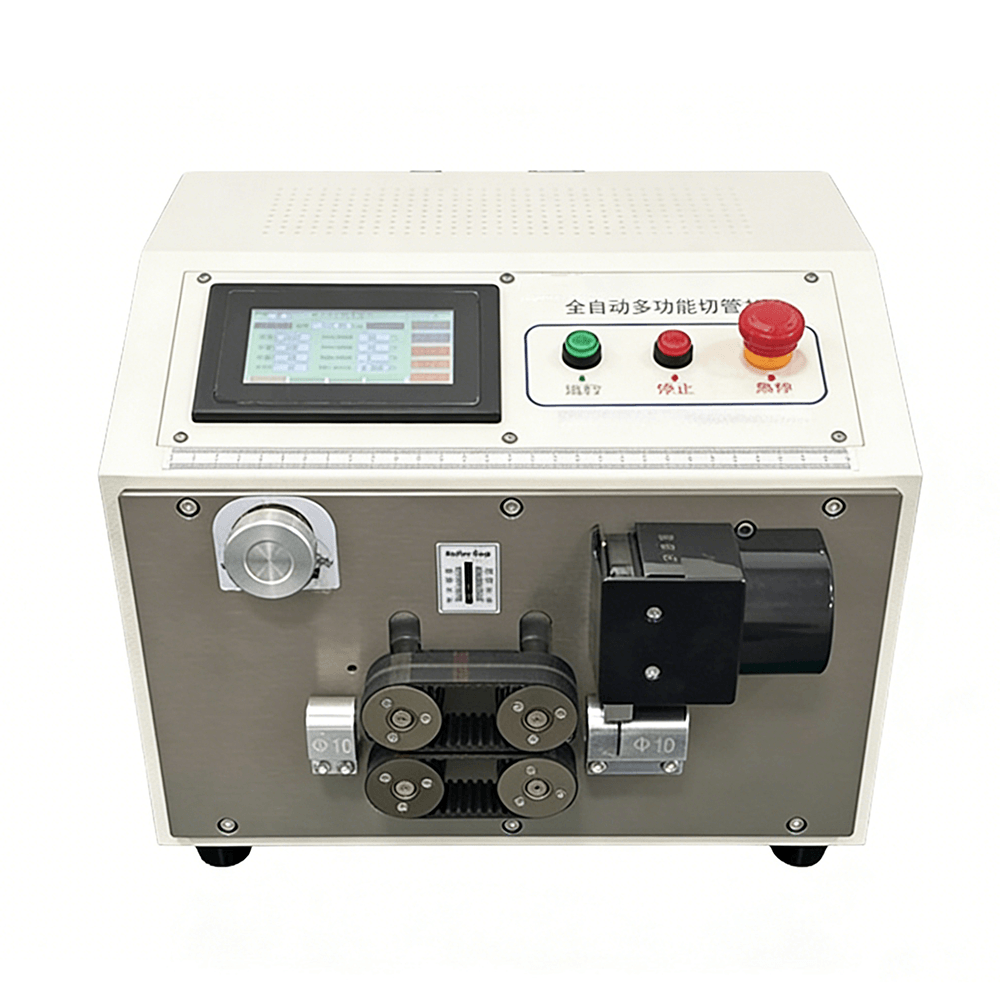

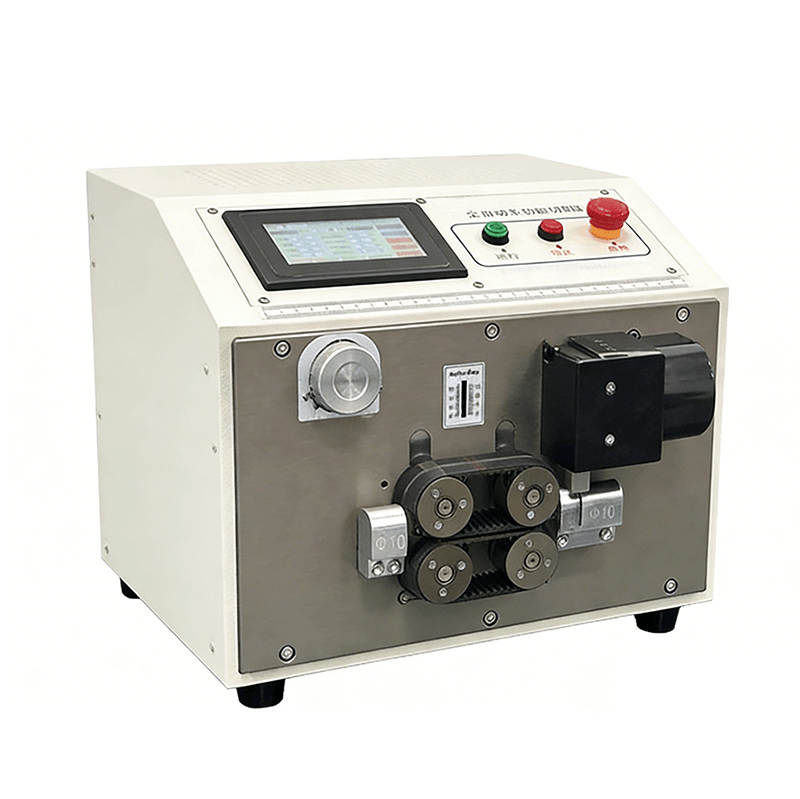

AC-315 Automatic Tube Cutting Machine
PRODUCT DESCRIPTION
The AC-315 is a high-performance, fully automatic tube cutting machine. Driven by a high-efficiency motor and a 4-roller track-type feeding system, it ensures fast, precise feeding without damaging the tube surface. Equipped with a 4.3-inch color touchscreen and an intelligent CNC system, it offers intuitive operation and delivers burr-free precision cutting for various tubes ranging from φ3mm to φ15mm, making it a reliable solution for improving tubing processing efficiency and quality.
FEATURES
1. Non-Marring Precision Cutting: The 4-roller track-type feeding system distributes pressure evenly, effectively preventing surface indentation or deformation on tubes, and ensures smooth, vertical cut faces.
2. Intelligent & Stable Control: Utilizes a hybrid stepper motor and a high-speed microprocessor with integrated circuit control for smooth operation and low failure rates.
3. Efficient & User-Friendly Operation: The 4.3-inch color touchscreen provides a clear HMI and supports 00-99 program storage. Features like automatic tube in/out, timed start, and jog adjustment facilitate quick tube changes and easy setup.
4. Automotive Industry Focus: Optimized for cutting automotive wiring harness conduits, fuel lines, as well as PVC, silicone, and rubber tubes, meeting the high standards of automotive manufacturing.
TECHNICAL SPECIFICATIONS
Model | AC-315 |
Display | 4.3-inch Color Touchscreen |
Cutting Diameter | ø5 - ø15mm |
Cutting Length | 0.01mm – 99999.99mm |
Cutting Accuracy | 0.01mm (Silent Hybrid Stepper Motor) |
Power Supply | AC220V 50/60Hz (110V Optional) |
Power | Rated Power: 400W / Total Power: 600W |
Blade Material | Utility Knife Blades |
Program Storage | 100 sets (00-99) |
Cutting Speed | Approx. 14,000 cuts/hour |
Dimensions | L360*W405*H295mm |
Weight | 25kg |
