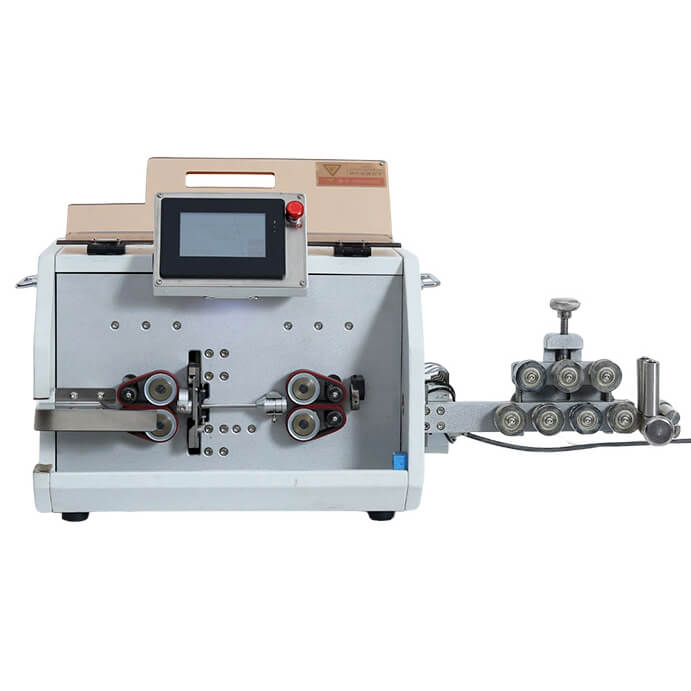

WS-910 Automatic Wire Cutting Stripping Machine
PRODUCT DESCRIPTION
The WS-910 is a high-performance, fully automatic computerized wire processing machine that integrates precise cutting and multi-function stripping. It features an advanced servo and stepper drive system and a user-friendly 4.3-inch true-color touchscreen for intuitive operation. Designed to handle a wide range of conductors from 1 to 10 mm², including single-core wires, multi-core cables, and shielded wires, it is a reliable solution for efficient and high-precision wire harness processing.
TECHNICAL SPECIFICATIONS
Model | WS-910 |
Wire Types | Single-core, Multi-core Cable, Shielded Cable, PVC, etc. |

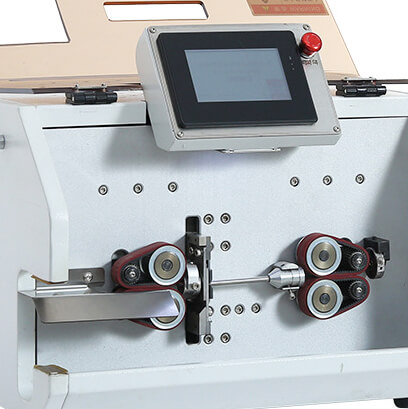

Display | 4.3-inch True-color Touchscreen |
Stripping Range | 1 – 10 mm² |
Max. Wire Diameter | Φ8 mm |
Cutting Length | 1mm - 99999.99mm |
Length Tolerance | ≤ 0.002 × L (L = Cutting Length) |

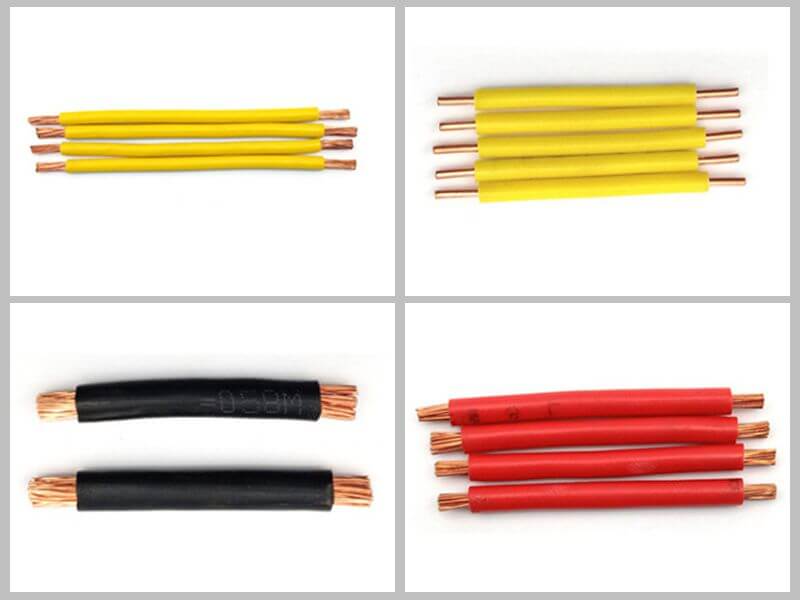

Stripping Length | Front Full-strip: 1-40mm; Front core wire strip: 4-8mm Rear Full-strip: 1-30mm; Rear core wire strip: 3-10mm |
Blade Material | High-quality High-Speed Steel |

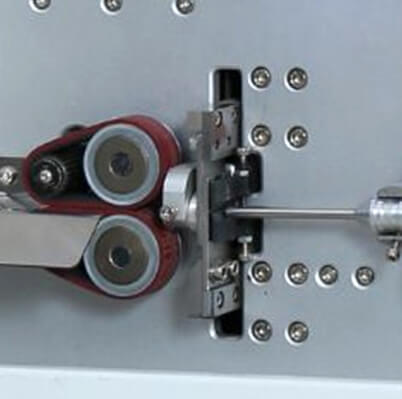

Drive Method | 8-wheel Drive (Stepper Feeder, Servo Cutter) |
Feeding Method | Belt feeding, no indentations or scratches |
Productivity | 1500 PCS/Hour (depending on length and wire size) |
Power Supply | AC 220V 50/60Hz |
Air Supply | 0.5-0.7Mpa |
