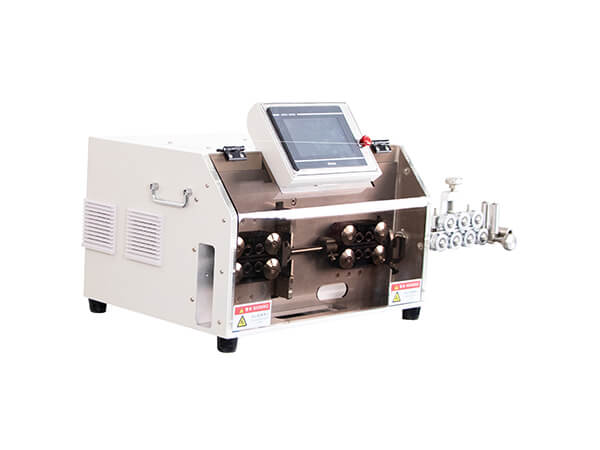

WS-950 Automatic Wire Cutting Stripping Machine

PRODUCT DESCRIPTION

The WS-950 is a high-performance, fully automatic computerized wire processing machine that integrates precise cutting and multi-function stripping. It features an advanced servo and stepper drive system and a user-friendly 7-inch true-color touchscreen for intuitive operation. Designed to handle a wide range of conductors from 1 to 50 mm², including single-core wires, multi-core cables, and shielded wires, it is a reliable solution for efficient and high-precision wire harness processing.

FEATURES

• High-Precision Processing: Utilizes a "16-wheel servo/stepper drive" and "belt feeding" system to ensure mark-free and scratch-free wire conveyance. The cutting length tolerance is within ±0.002×L, guaranteeing accurate fixed-length cutting.

• Versatile Stripping: Supports both full-strip and semi-strip modes for wire front and rear ends (front full-strip up to 200mm, semi-strip up to 500mm), meeting complex terminal processing requirements.

• Wide Compatibility: Handles wire sizes from 1 to 50 mm² with a maximum outer diameter of Φ18mm, suitable for various materials including PVC.

• Efficient Production: Theoretical maximum productivity reaches 1000 cycles/hour. Combined with large program storage capacity (e.g., 99 sets), it allows quick switching between different wire processing programs, significantly boosting batch operation efficiency.

• Reliability & Durability: The core cutting blades are made of high-quality imported high-speed steel, ensuring long-term sharpness, stability, and low failure rates.

TECHNICAL SPECIFICATIONS
