BS-60 is a professional shielded wire processing machine designed to efficiently separate and straighten braided shielding layers. It features dual brush options and a reversing function, making it highly versatile for various wire types.

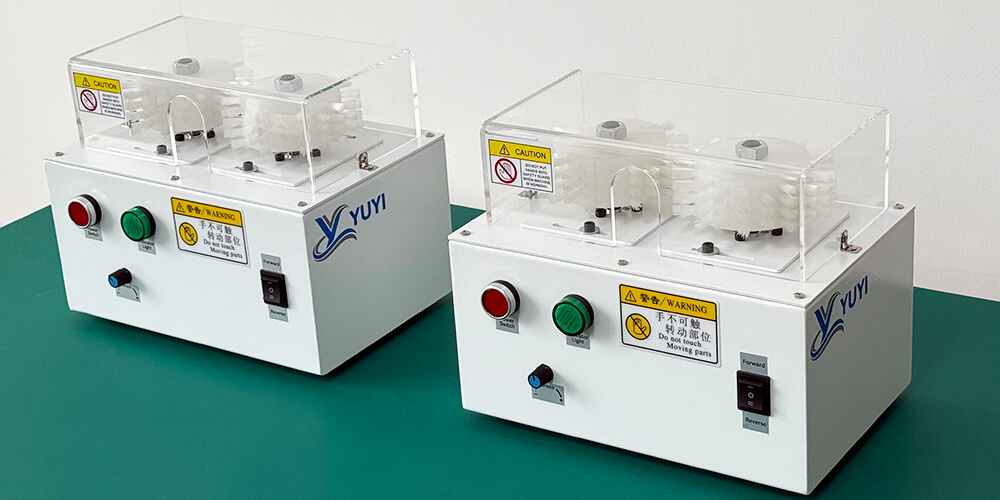

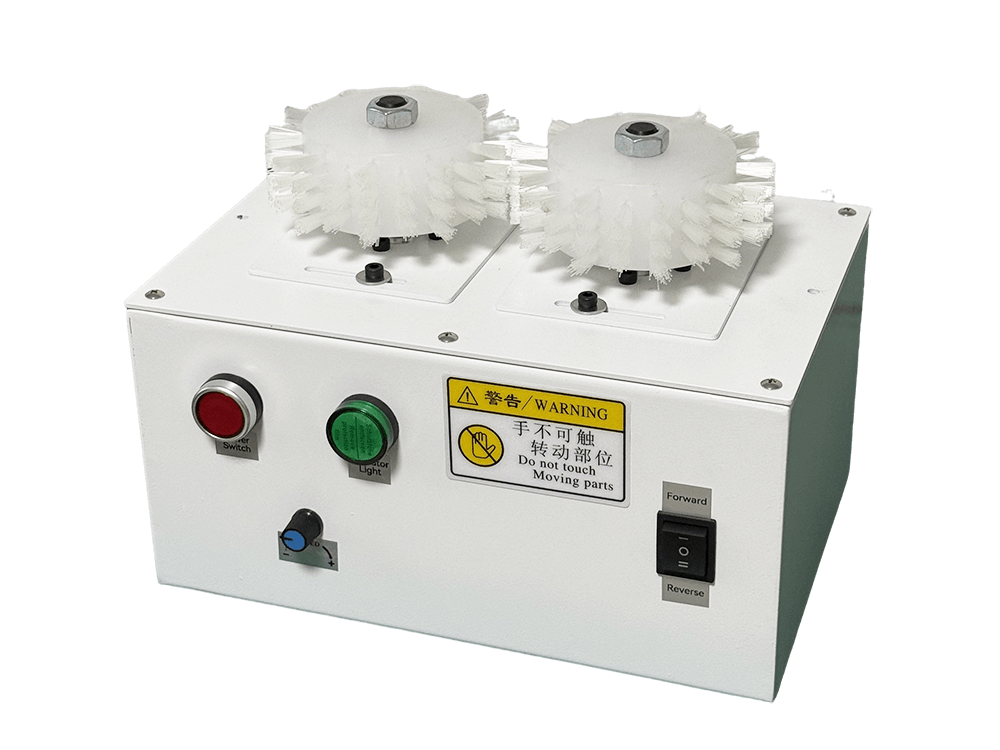

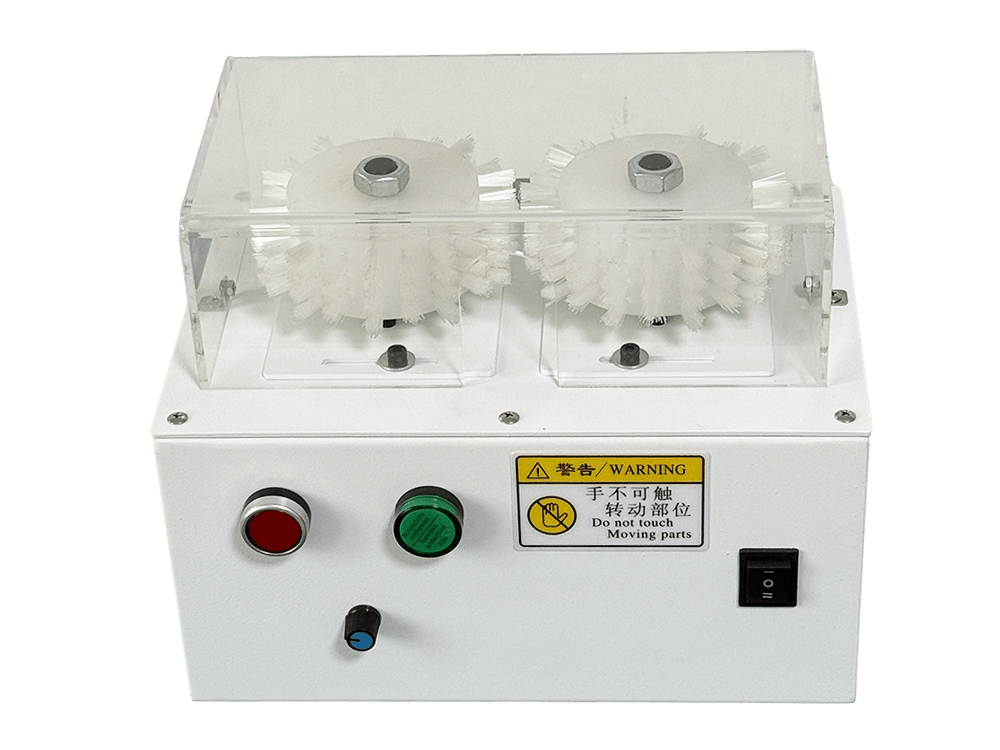

BS-60 Shielded Wire Braid Separating Machine
PRODUCT DESCRIPTION
BS-60 is a professional shielded wire processing machine designed to efficiently separate and straighten braided shielding layers. It features dual brush options and a reversing function, making it highly versatile for various wire types.
PRODUCT FEATURES

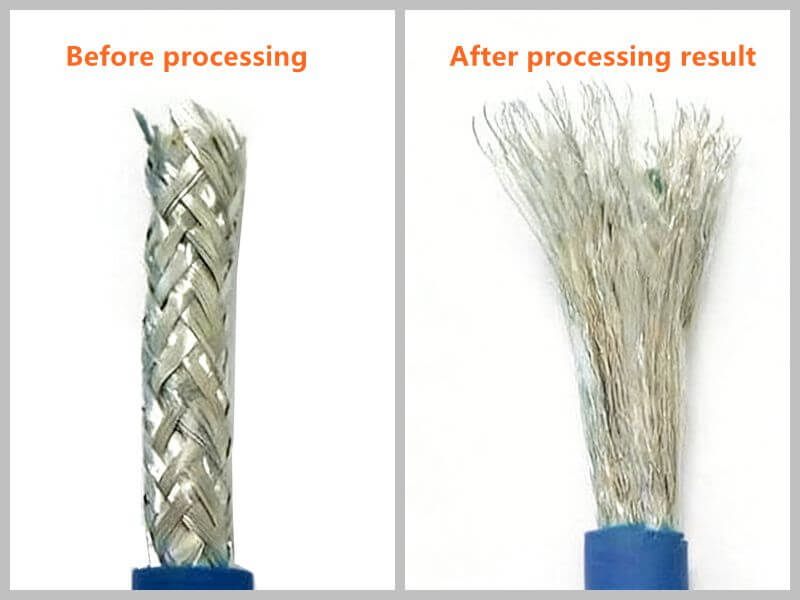

Efficient Shielding Processing: Separates and straightens braided shielding layers for easy post-processing.
User-Friendly Operation: Simply hold the wire, insert it from the front, and rotate it gently. For longer stripping lengths, pull the wire back and forth to ensure thorough brushing.

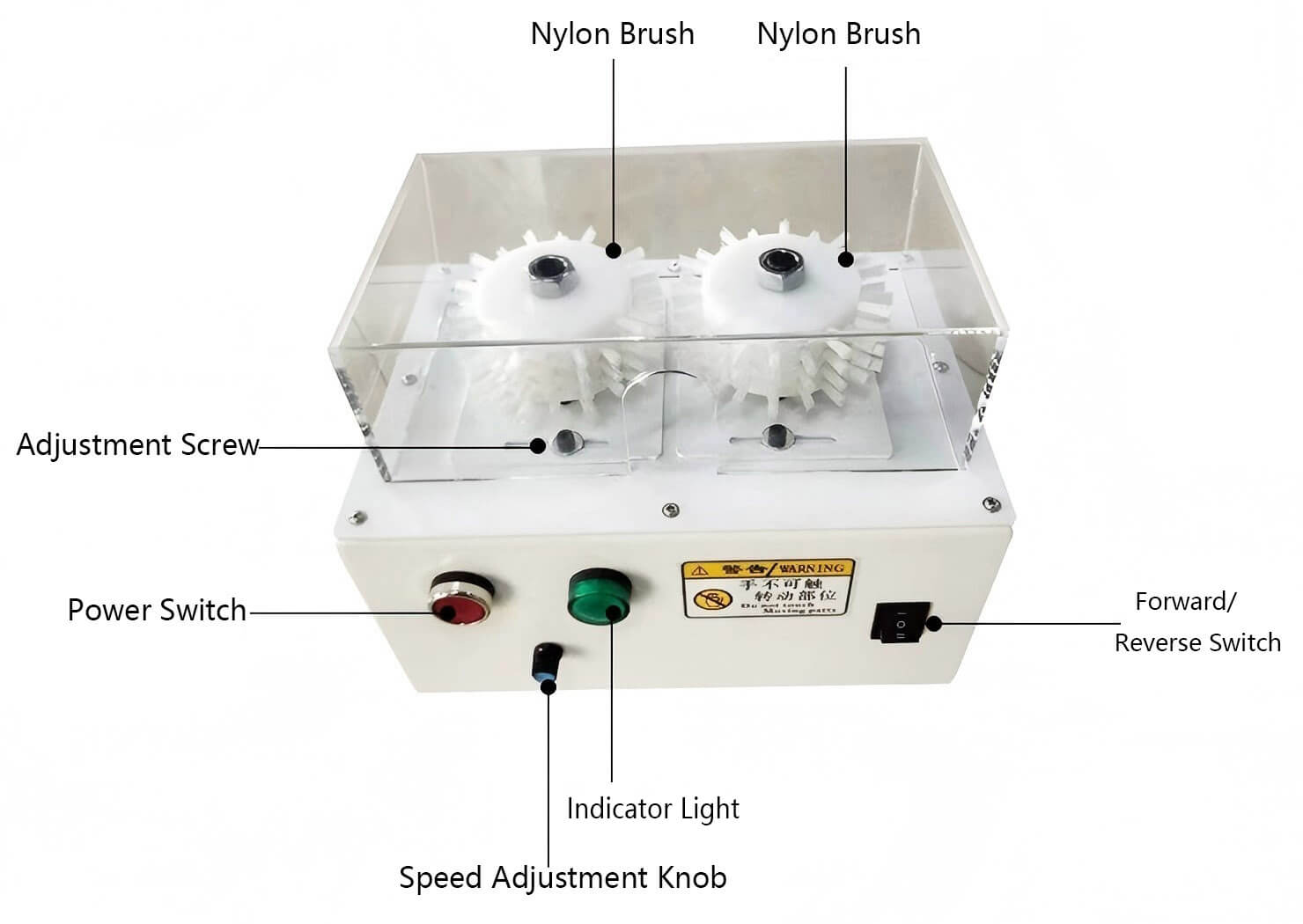

Adjustable Design: The distance between the brush wheels can be adjusted to accommodate wires of different diameters.
TECHNICAL SPECIFICATIONS
Model | BS-60 |
Motor Speed | 0-6000 RPM (adjustable) |
Motor Power | 50W × 2 (toroidal transformer power supply) |
Processing Length | 5-60mm |
Wire Diameter Range | 1-25mm |
Power Supply | 220V AC, 50Hz |
Dimensions | L320 × W220 × H260mm |
Net Weight | 10kg |
