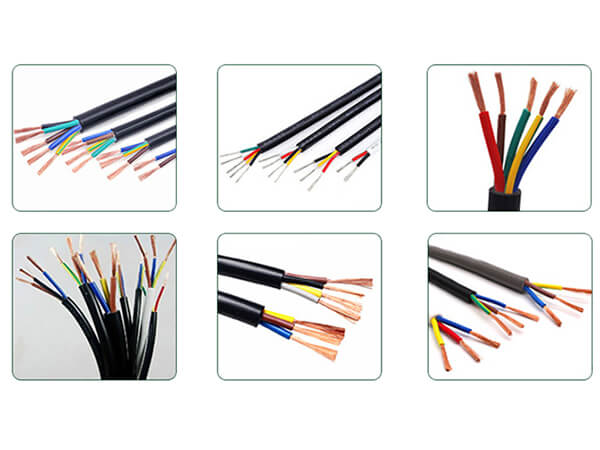

The WS-615H is specifically for processing multi-core sheathed cables. It can sequentially complete outer jacket stripping, inner conductor stripping, and fixed-length cutting in one fully automated cycle, consolidating multiple processing steps for complex cables into a single operation.

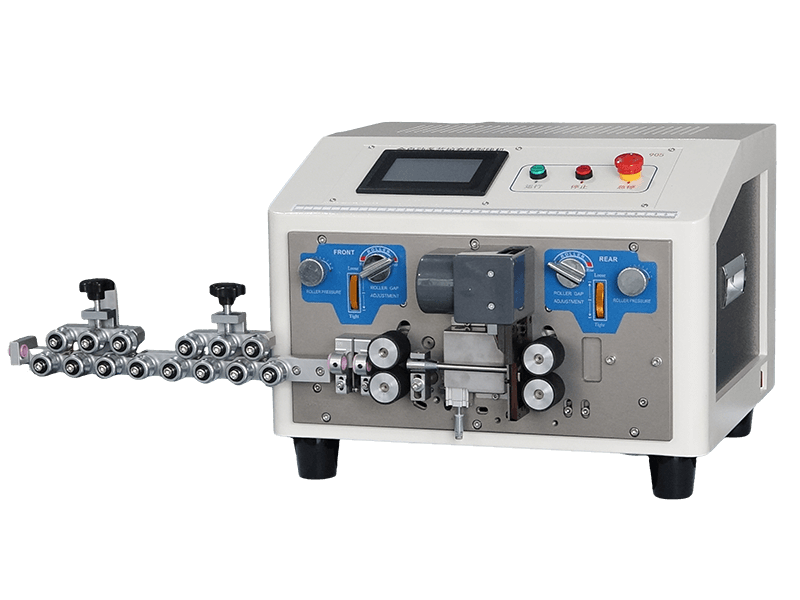

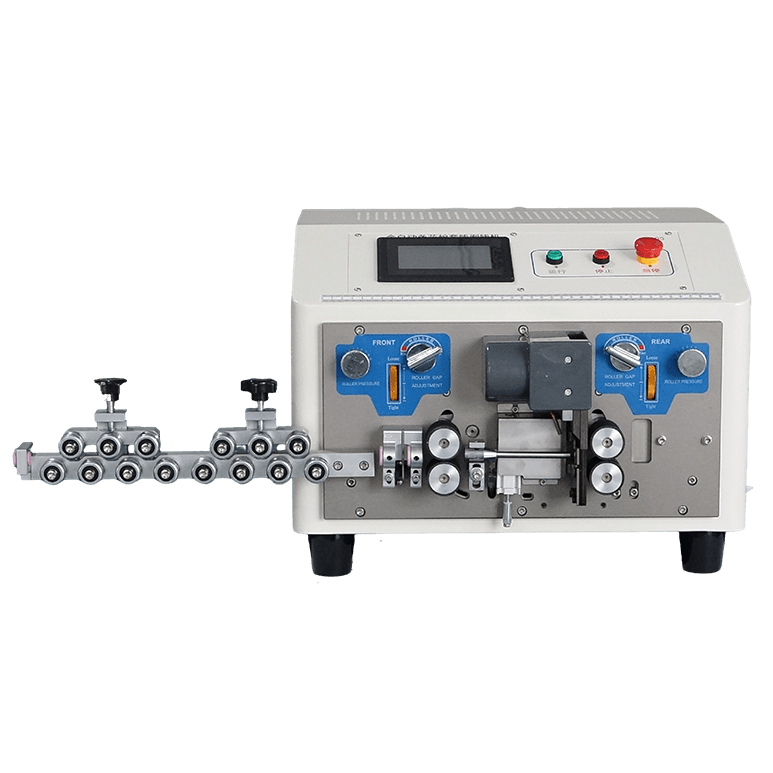

WS-615H Automatic Wire Cutting Stripping Machine
PRODUCT DESCRIPTION
The WS-615H is specifically for processing multi-core sheathed cables. It can sequentially complete outer jacket stripping, inner conductor stripping, and fixed-length cutting in one fully automated cycle, consolidating multiple processing steps for complex cables into a single operation.
TECHNICAL SPECIFICATIONS
Model | WS-615H |
Display | 4.3-inch Touchscreen LCD Display |
Stripping Range | φ1-φ6mm |
Cutting Length | 0.1mm - 99999.99mm |
Stripping Length | Front: Outer jacket 0.1-250mm; Inner core 1-30mm Rear: Outer jacket 0.1-70mm; Inner core 1-30mm |
Stripping Accuracy | 0.01 mm (via Silent Hybrid Stepper Motor) |
Blade Material | High-quality Tungsten Steel / High-Speed Steel |
Program Storage | 100 sets of data |
Productivity | 1000-2000 PCS/H (depending on length and wire size) |
Power Supply | AC 220V 50/60Hz 700W |
Air Supply | 0.5-0.8Mpa |
Weight | 38kg |
Dimensions | L470*W450*H350mm |
