TC-6-6 Pneumatic Crimping Machine
PRODUCT DESCRIPTION

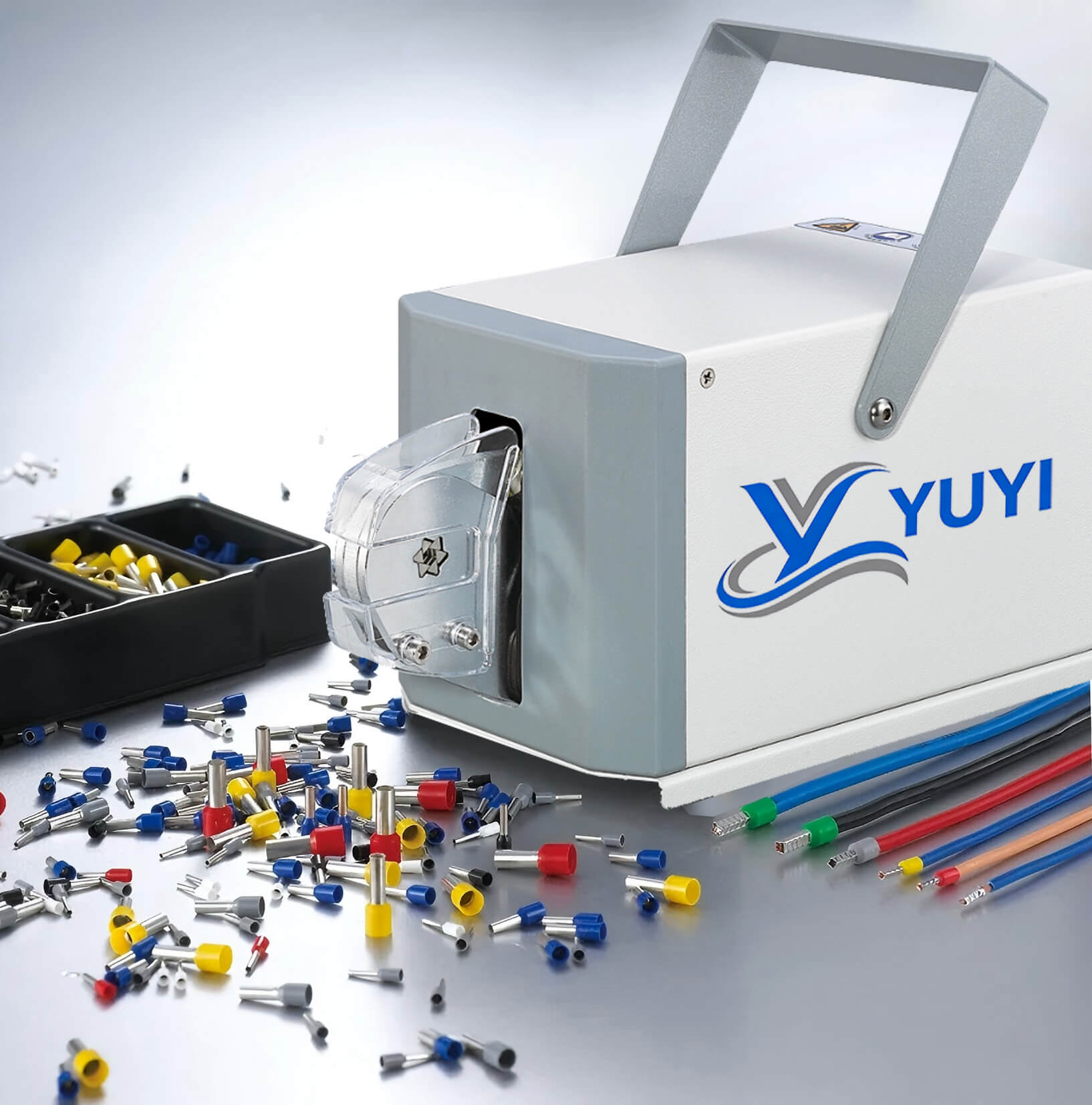

TC-6-6 is a precision pneumatic crimping machine designed for hexagonal crimping, tailored for fine to medium wire processing with a crimping range of 0.08-6mm². Delivering a steady 1.2T crimping output via 0.5-0.7MPa pneumatic drive, it is dedicated to crimping sleeve and double-sleeve terminals with high accuracy. Equipped with lateral terminal feeding and an adaptive die mechanism, this compact and lightweight machine eliminates crimp errors, and its space-saving design makes it a perfect bench-top crimping solution for small-scale and precision wire harness production.
CORE FEATURES
Lateral terminal feeding for smooth and continuous terminal feed
Adaptive mechanism: Crimping dies auto-adjust to terminal sizes, no mis-crimping with mismatched dies
Universal compatibility: Fits all sleeve and double-sleeve terminals within the crimping range
Stable pneumatic drive: 0.5-0.7MPa air pressure for firm and reliable 1.2T crimping output
Ultra-compact & lightweight: Small footprint and easy to carry, suitable for all bench-top processing scenarios
SIMPLE OPERATION STEPS

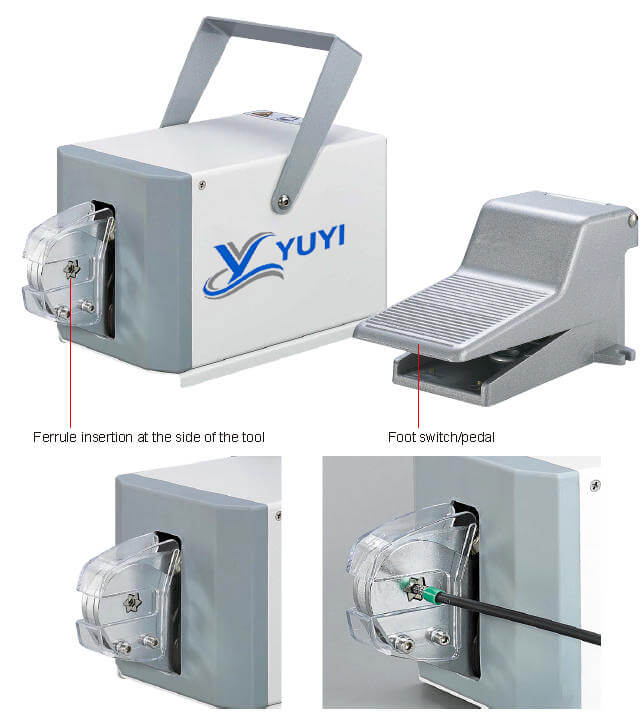

Side entry for terminals / ferrules
Adaptive mechanism design, crimping dies auto-adjust to terminal sizes, no mis-crimping with mismatched dies.
TECHNICAL SPECIFICATIONS
| Model | TC-6-6 |
| Crimping Type | Hexagonal Crimp |
| Crimping Range | 0.08-6mm² |
| Air Pressure Range | 0.5-0.7MPa |
| Crimping Output | 1.2T |
| Overall Dimension | 250×125×125mm |
| Net Weight | 4kg |
| Terminal Feeding Mode | Lateral Feeding |
| Die Feature | Self-Adapting Mechanism |
| Applicable Terminals | Sleeve / Double-sleeve Terminals |
