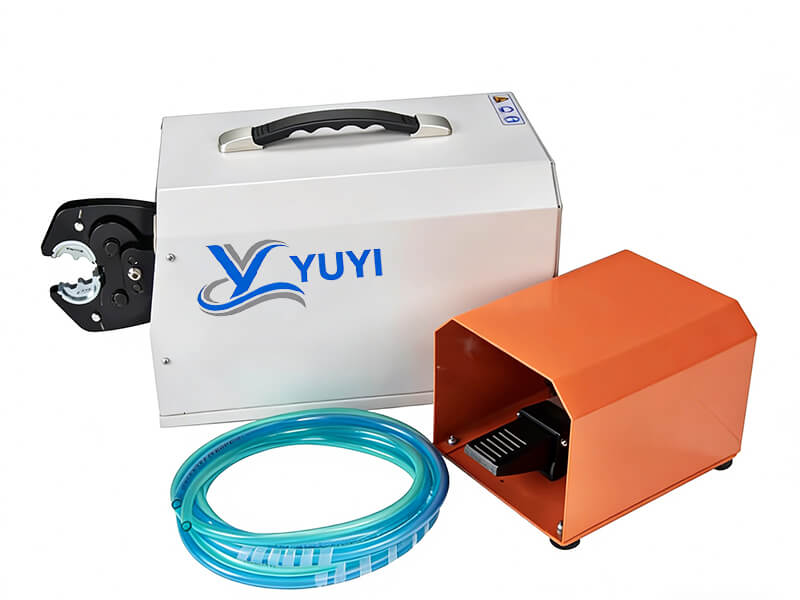

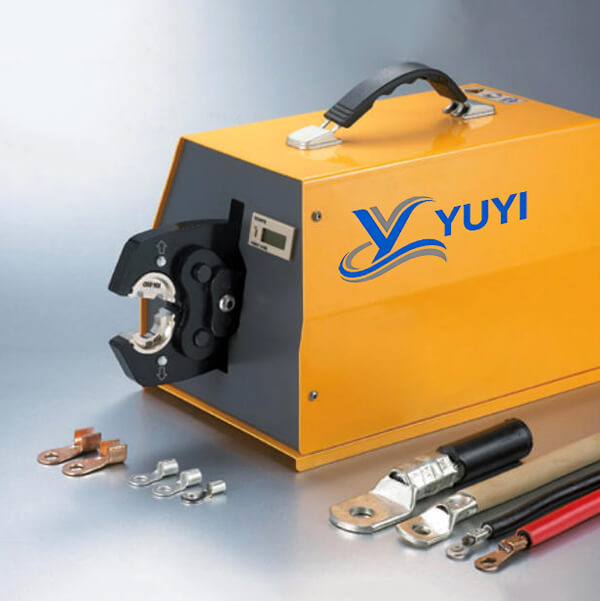

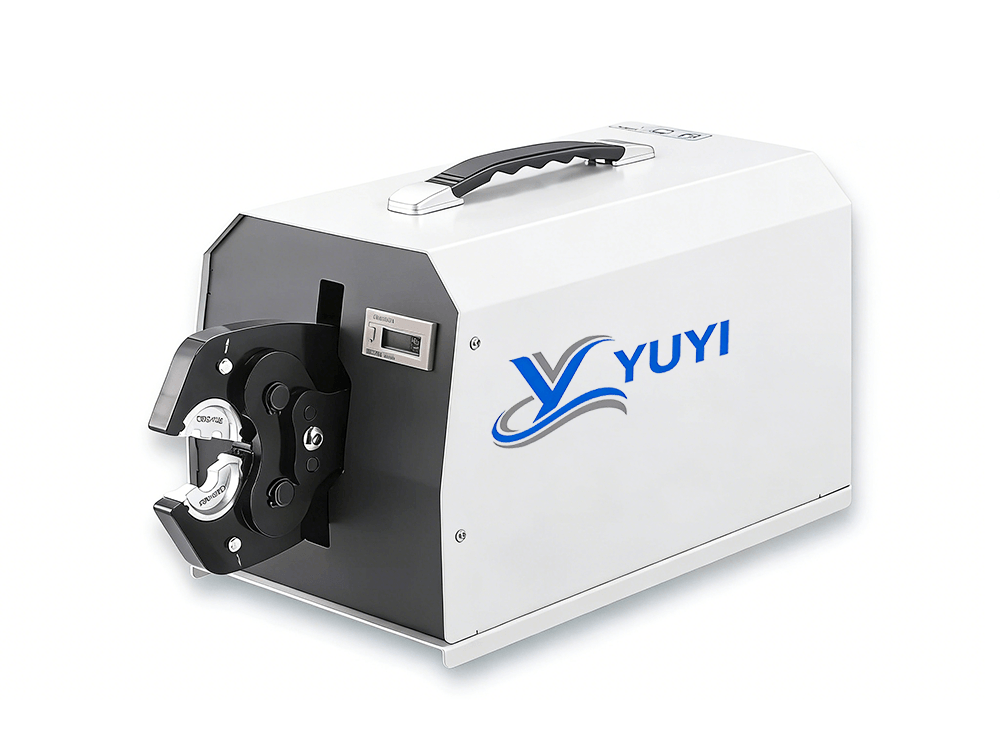

TC-300L Pneumatic Crimping Machine
TC-300L Pneumatic Crimping Machine
TC-300L Pneumatic Crimping Machine
PRODUCT DESCRIPTION

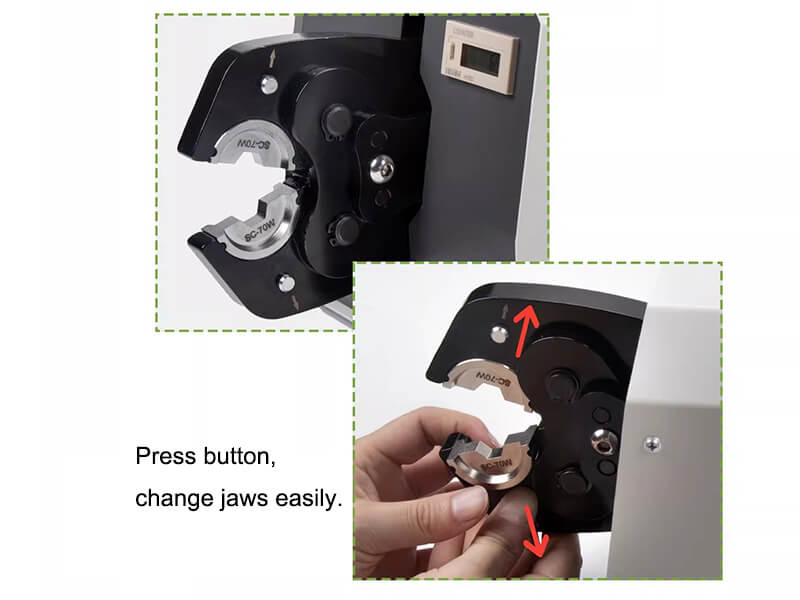

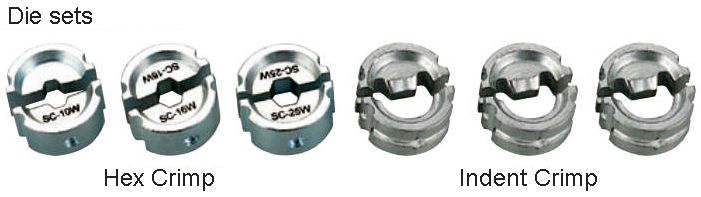

Interchangeable Die Design-Allows for crimping various terminal types.

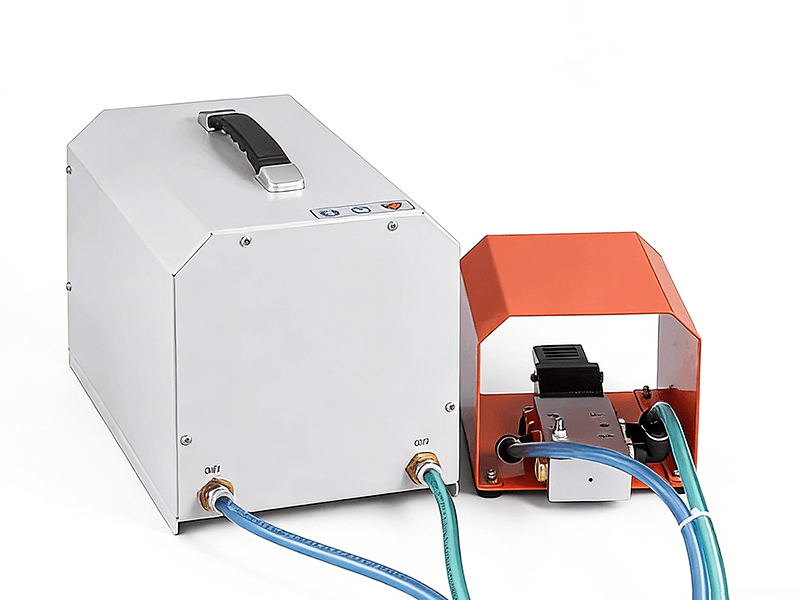

Foot Pedal Control-Ideal for medium-volume terminal production.
More Reliable, Stable, and Efficient than manual crimping tools.
Portable and Lightweight design for easy operation and movement.
TECHNICAL SPECIFICATIONS
Model | TC-300L |
Crimping range | 6-300mm² |
Air pressure range | 0.5-0.8MPa |
Output | 9.0T |
Overall dimension | 400x200x210mm |
Weight | 16kg |
