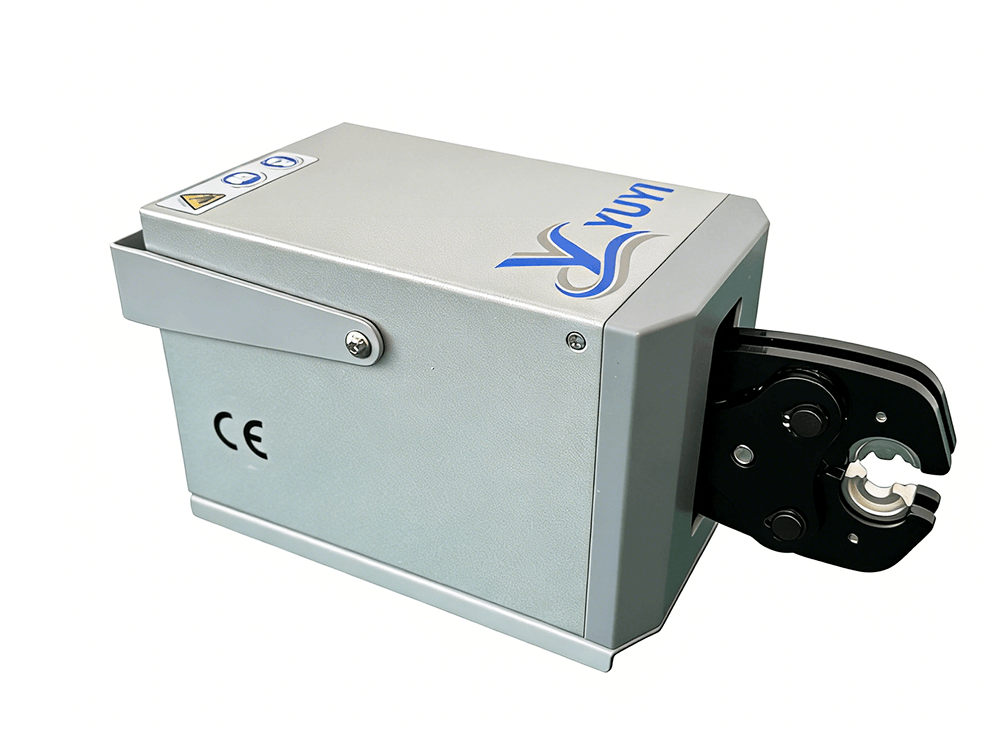

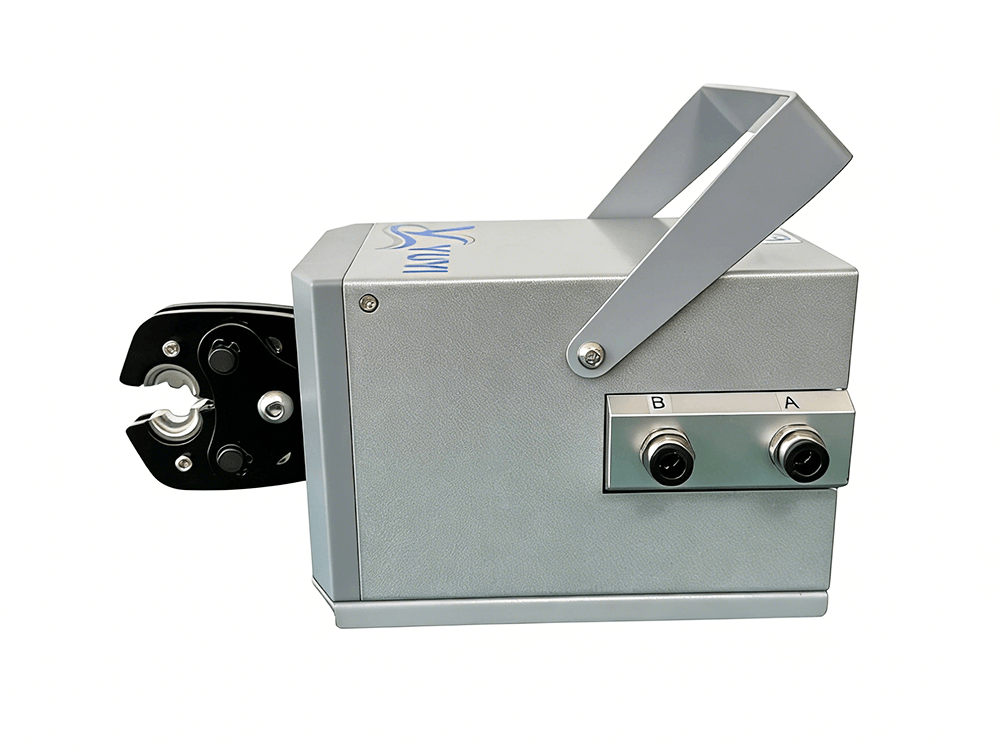

TC-50L Pneumatic Crimping Machine
Interchangeable Die Design-Allows for crimping various terminal types.Foot Pedal Control-Ideal for medium-volume terminal production.More Reliable, Stable, and Efficient than manual crimping tools.Portable and Lightweight design for easy operation and movement.
TC-50L Pneumatic Crimping Machine
PRODUCT DESCRIPTION

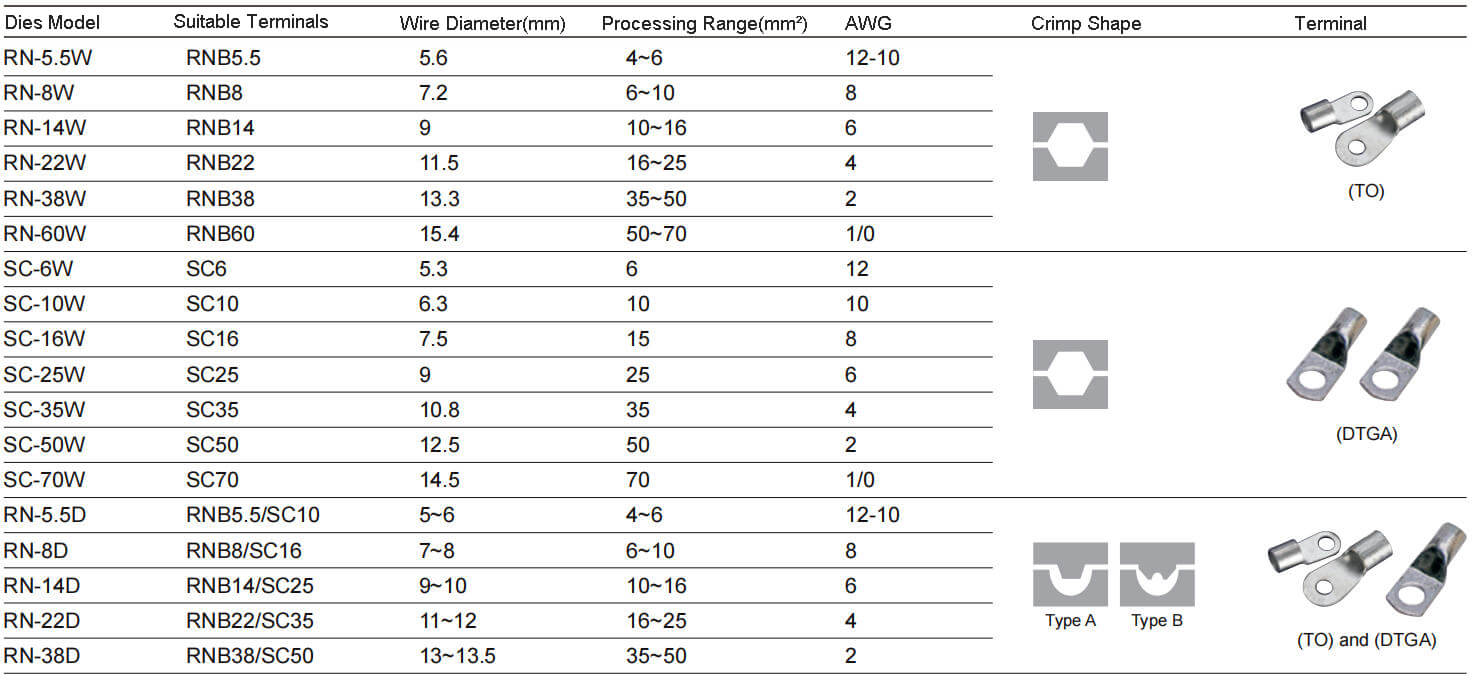

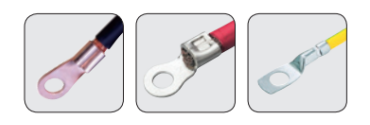

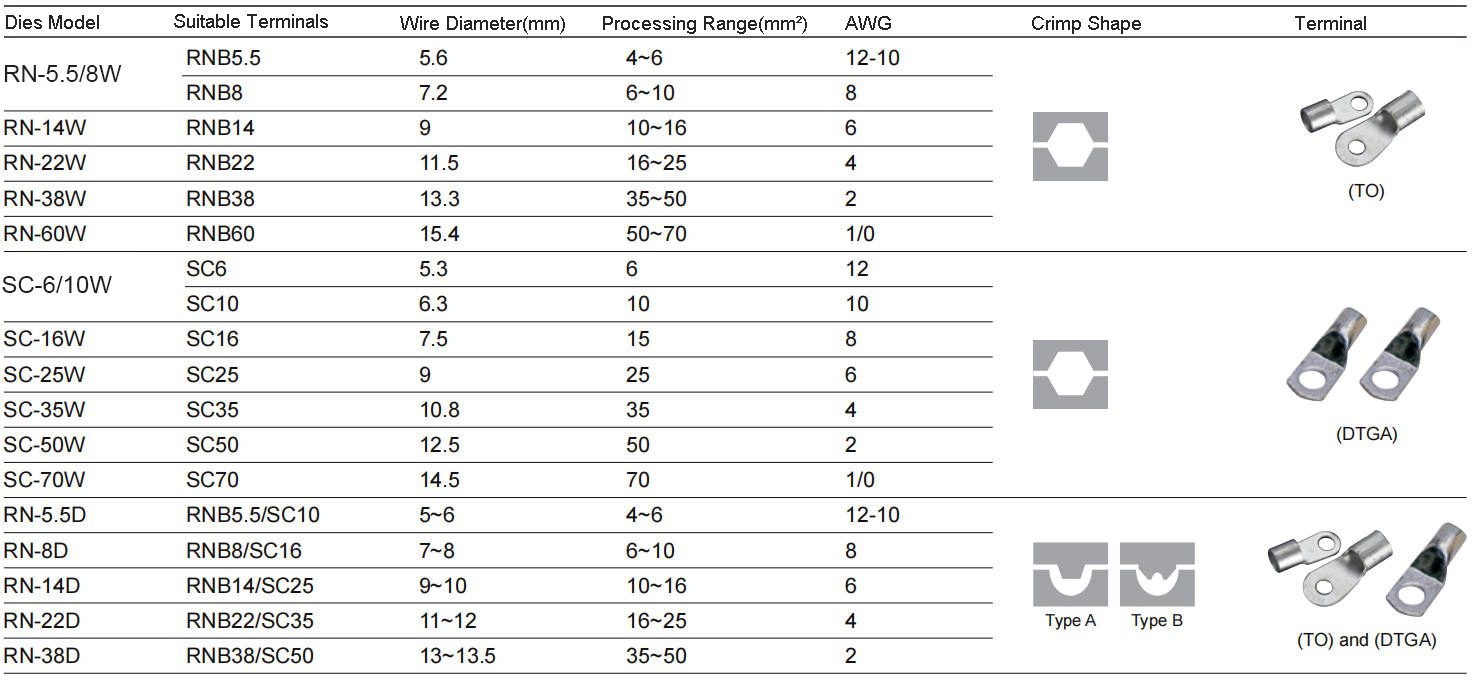

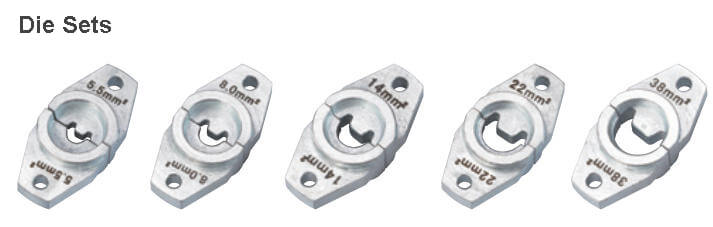

Interchangeable Die Design-Allows for crimping various terminal types.

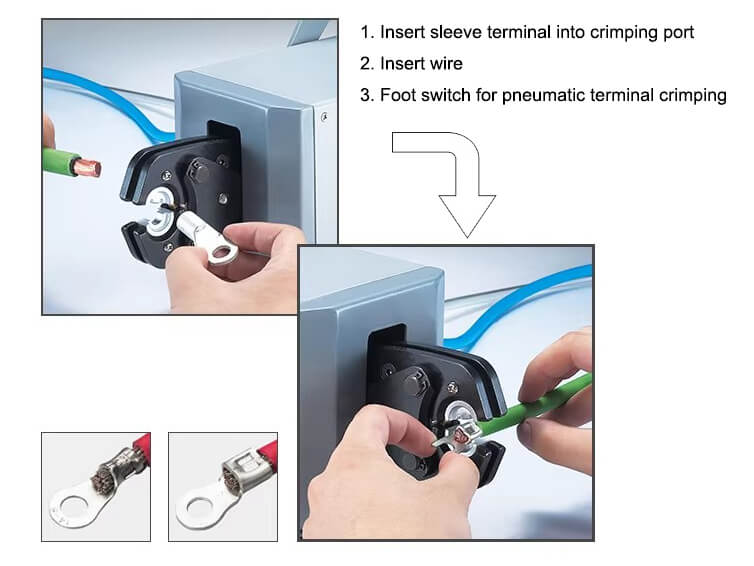

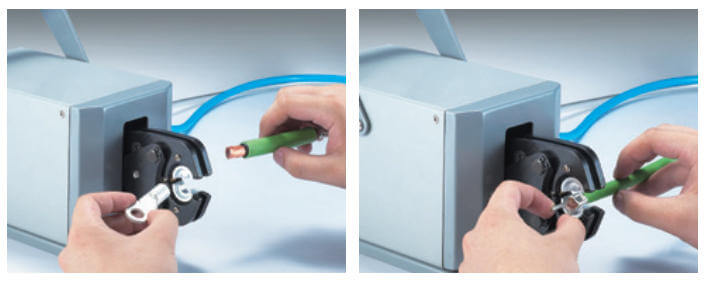

Foot Pedal Control-Ideal for medium-volume terminal production.
More Reliable, Stable, and Efficient than manual crimping tools.
Portable and Lightweight design for easy operation and movement.
TECHNICAL SPECIFICATIONS
Model | TC-50L |
Crimping range | 6-70mm² |

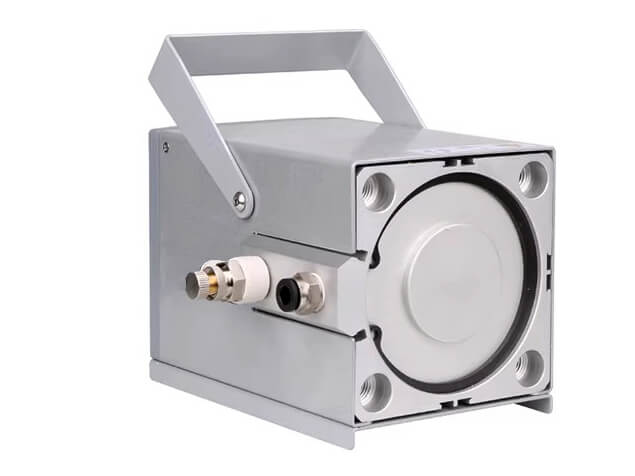

Air pressure range | 0.5-0.8MPa |
Output | 2.0T |
Overall dimension | 275x128x145mm |
Weight | 7kg |
