TW-303XL is a high-precision traction & gripper tape winding machine for complex branched wire harnesses. Equipped with roller traction + pneumatic gripper dual system, it realizes stable wire feeding, anti-twisting and precise positioning. It supports full taping, spot taping, spacing taping, fixed-length and segmented taping.

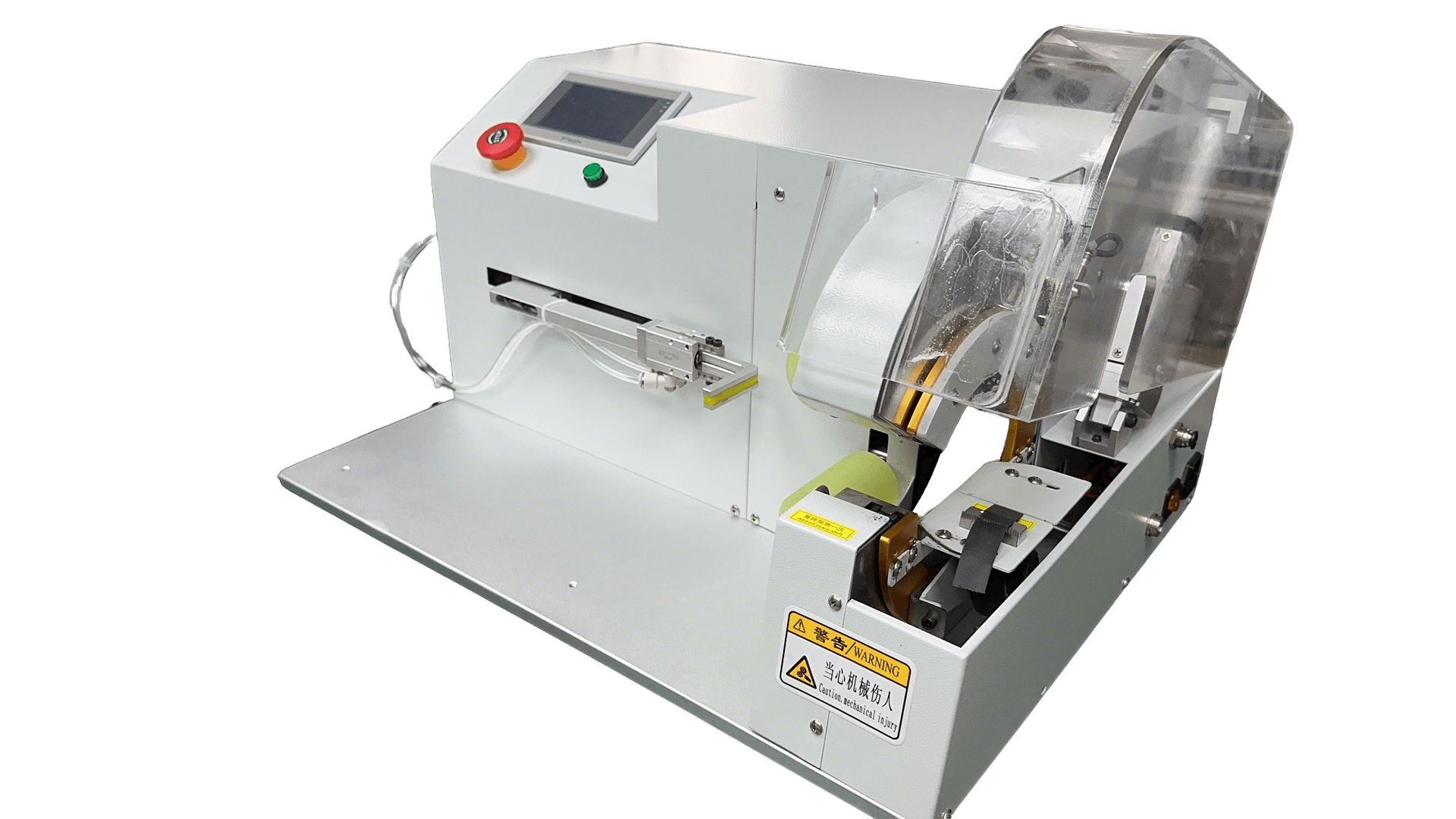

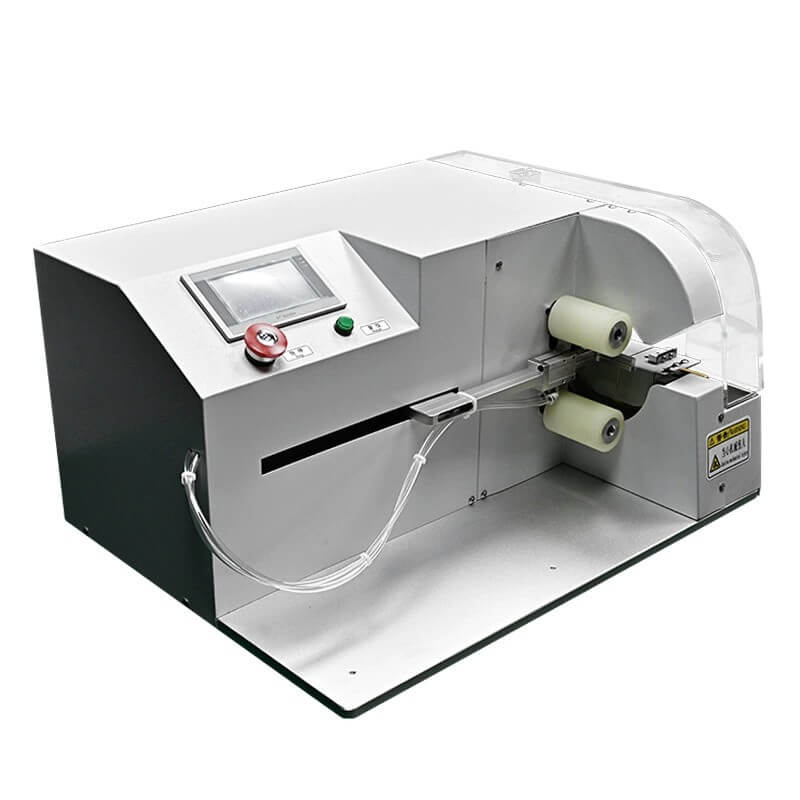

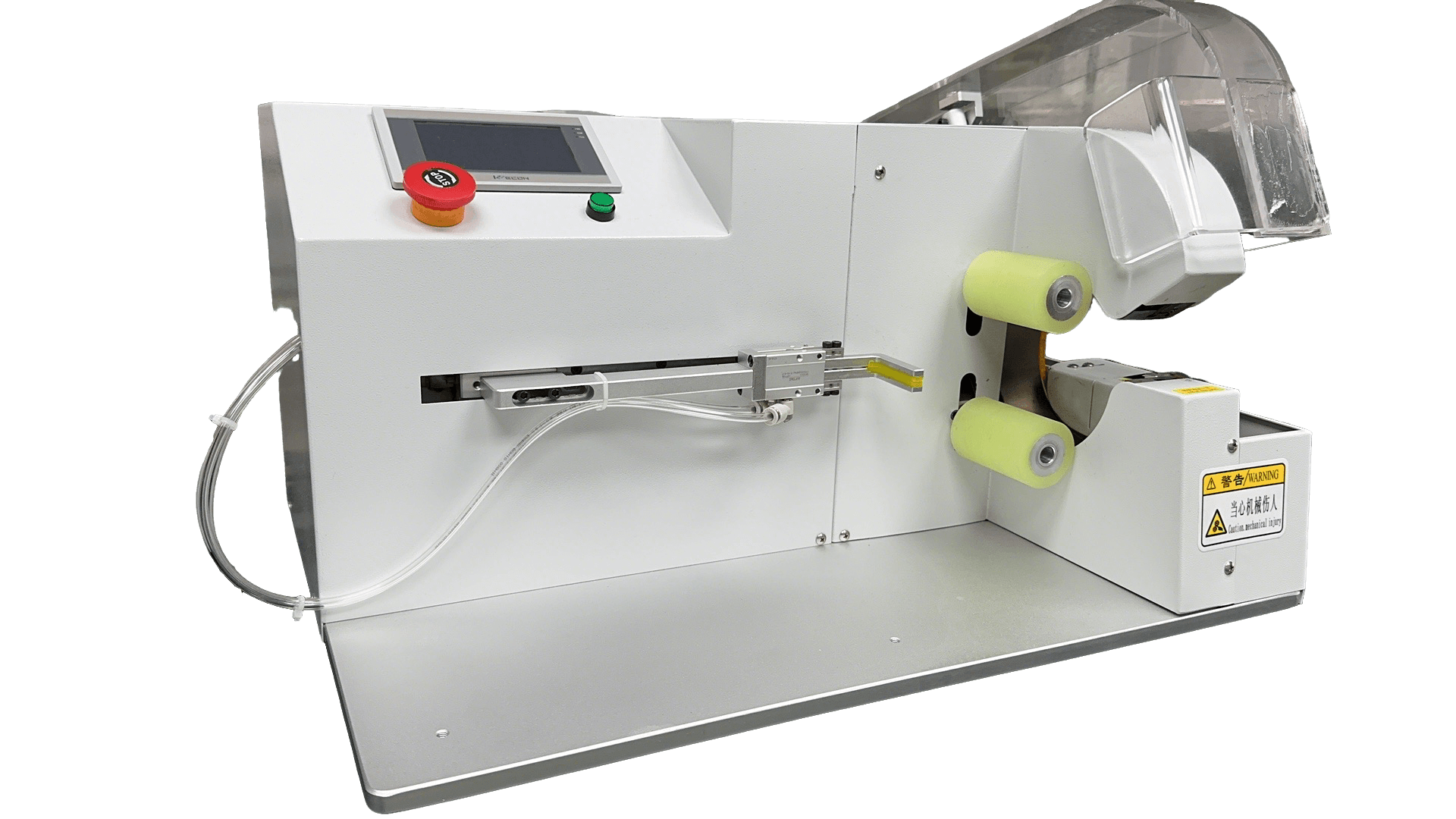

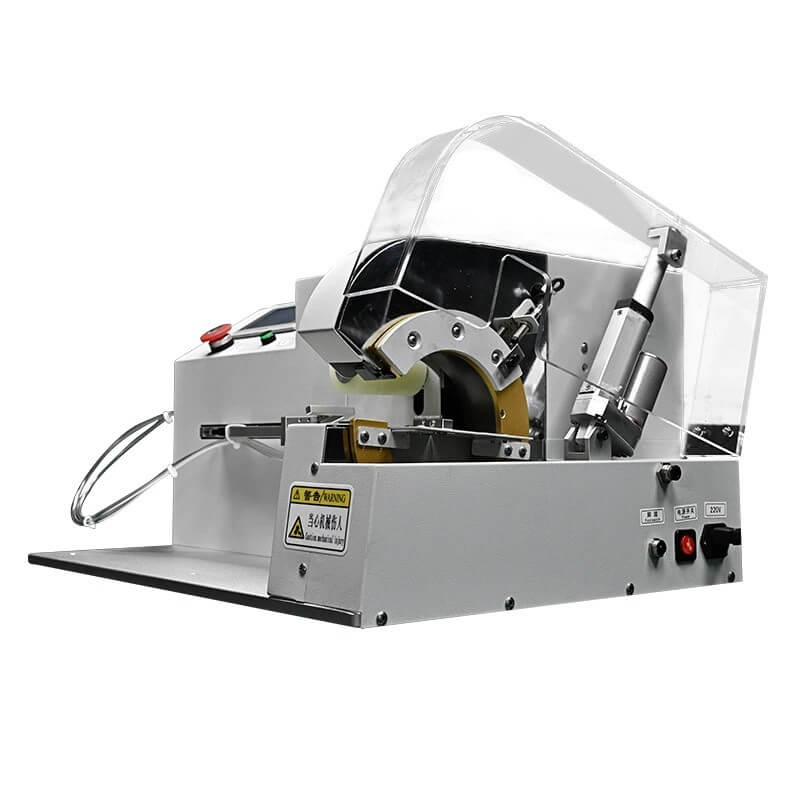

TW-303XL Traction & Gripper Tape Winding Machine
PRODUCT DESCRIPTION
TW-303XL is an efficient solution designed for the wire harness processing industry. It is equipped with a pneumatic traction feeding system, automatically grips and feeds wires stably, minimizing twisting and ensuring uniform wrapping. With pneumatic gripper positioning based on roller traction. It realizes precise wire feeding, fixed-length and multi-point taping, especially suitable for complex branched harnesses and high-precision applications.
TECHNICAL SPECIFICATIONS
Model | TW 303XL |
Max Wire Diameter | Φ30mm |
Main Motor Speed | 4500 rpm |
Compatible Tape | Flannel tape, Acetate tape, Electrical tape |
Tape Width | 5–25mm (customizable) |
Tape Core ID | Φ37 (standard), Φ32 (optional) |
Max Tape OD | ＜100mm |
Winding Length | Unlimited |
Voltage | 220V / 110V |
Dimensions | 650×500×350mm |
Machine Weight | 45KG |
FEATURES
Dual system: roller traction + pneumatic gripper for higher precision & anti-twisting
Supports full taping, spot taping, spacing taping; fixed-length & segmented taping available
Perfect for complex branched wire harnesses, stable and neat winding
High speed 4500 rpm, supports unlimited length continuous winding
Wide tape compatibility, adjustable parameters for high-end harness processing
