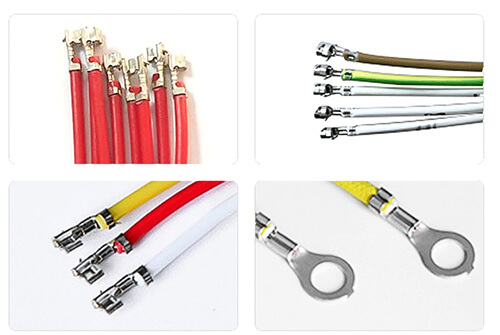

TC-40T Frequency-Conversion Terminal Crimping Machine is a cost-effective and versatile crimping machine. Driven by a frequency-conversion motor, it operates with significantly lower noise than traditional models. It delivers 4.0 tons of pressure with a 30mm stroke, suitable for crimping most standard terminals.

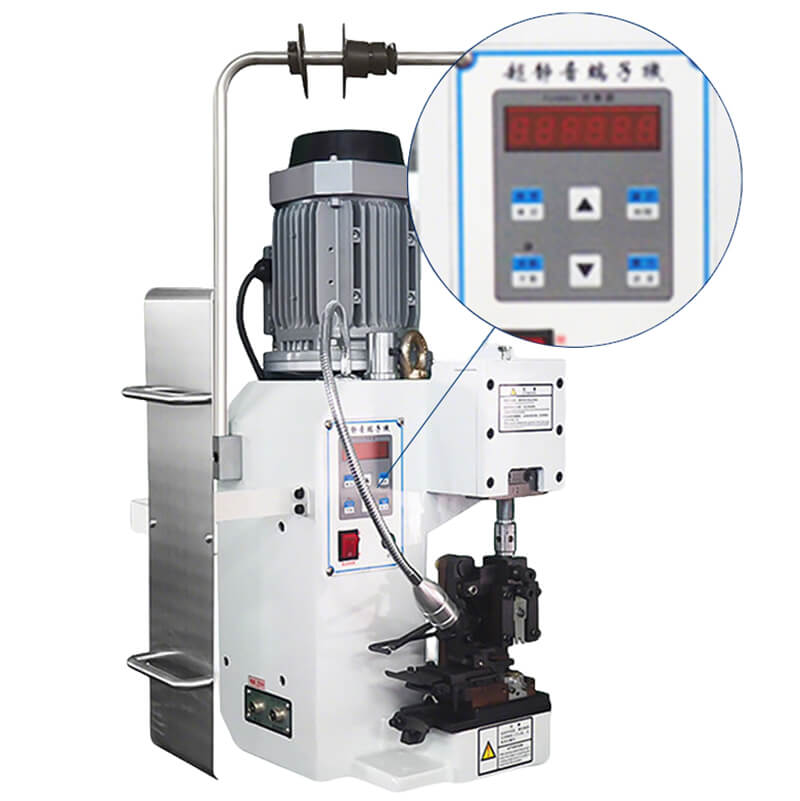

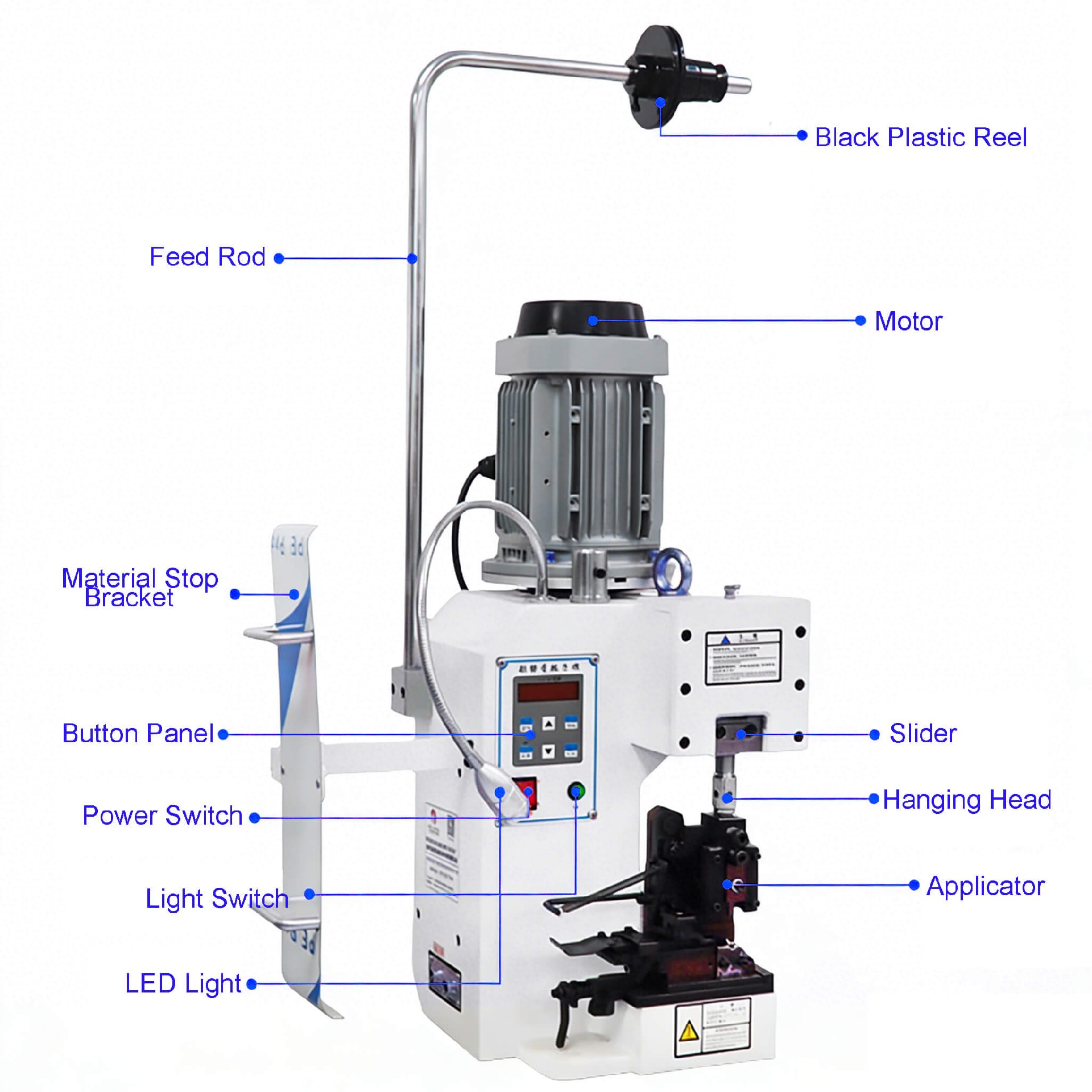

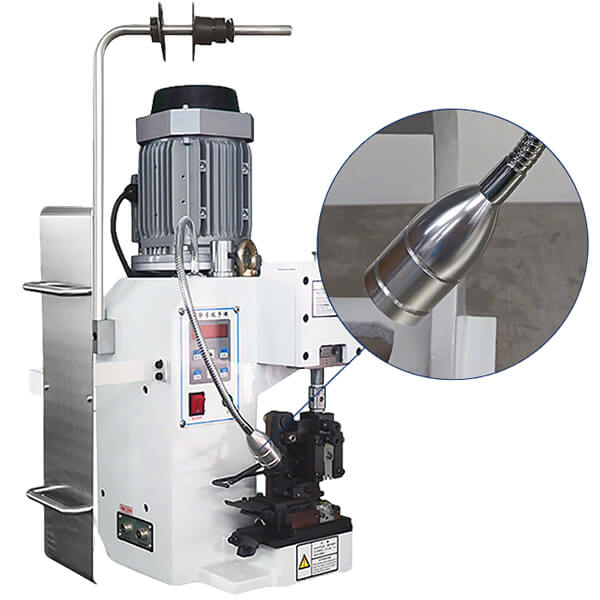

TC-40T Terminal Crimping Machine
PRODUCT DESCRIPTION
TC-40T Frequency-Conversion Terminal Crimping Machine is a cost-effective and versatile crimping machine. Driven by a frequency-conversion motor, it operates with significantly lower noise than traditional models. It delivers 4.0 tons of pressure with a 30mm stroke, suitable for crimping most standard terminals. The machine features a compact design with a low power consumption of 1.5Kw and a weight of 90 kg, making it energy-efficient and easy to integrate into workshop layouts, ideal for stable, medium-volume production.
TECHNICAL SPECIFICATIONS
Model | TC-40T |
Crimping Method | Frequency-conversion motor |
Output | 4.0T |
Press Stroke | 30mm |
Power Supply | AC 220V 50/60Hz |
Power | 1.5KW |
Frequency converter | 2.2KW |
Dimensions | L350*W360*H740mm |
Weight | 90kg |
