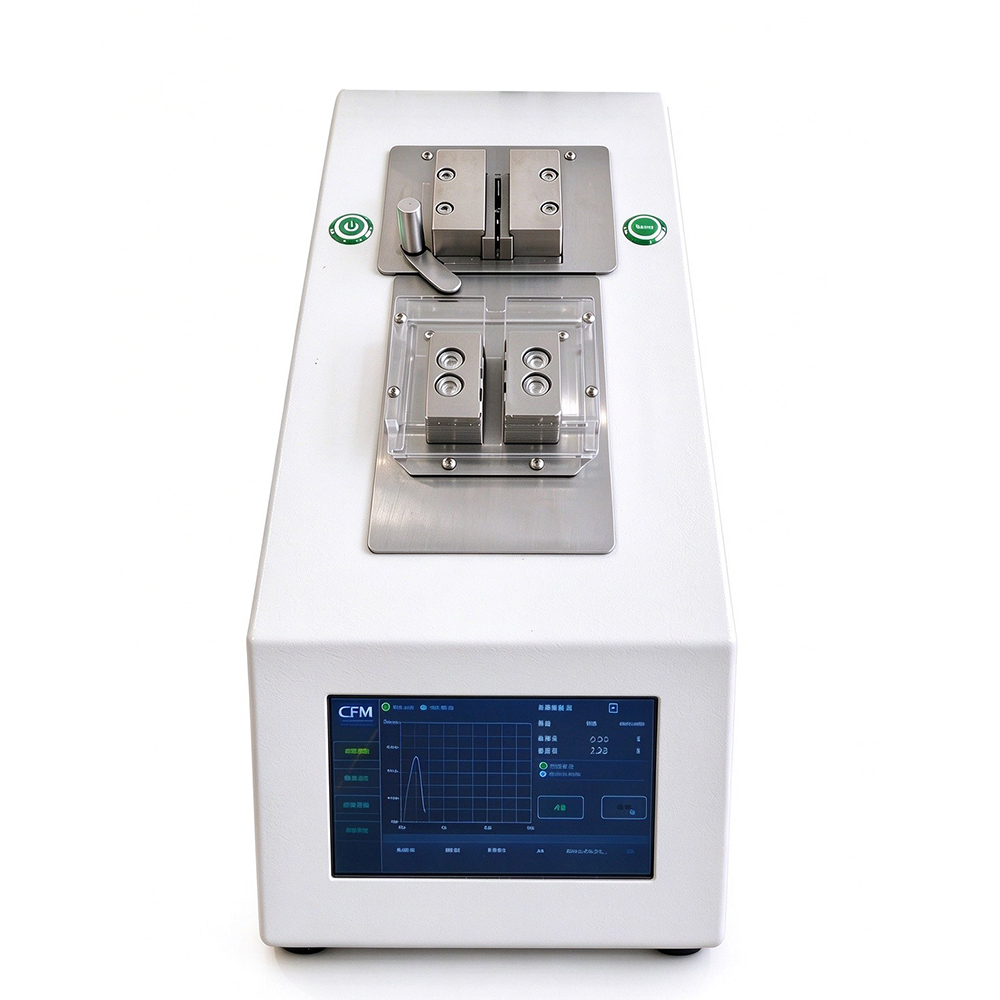

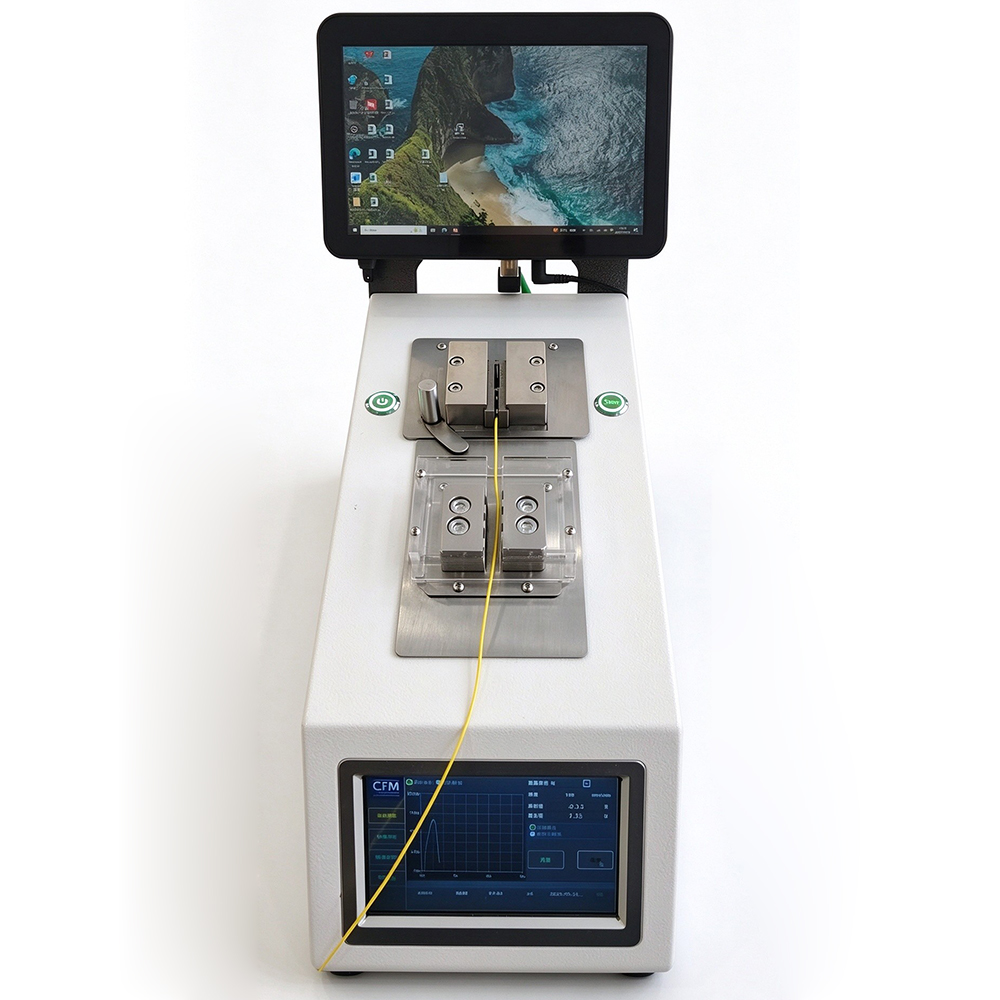

TQ-03 Intelligent Pull Force Tester

PRODUCT DESCRIPTION

TQ-03 is a fully automatic intelligent terminal tensile tester, applicable for the tensile strength test of crimping joints between terminals and wire conductors. Equipped with a fully automatic electric clamping system, it completes the whole process of sample clamping, tensile testing and fixture return automatically without manual operation, significantly improving test efficiency and result consistency. It is especially suitable for high-frequency and mass testing scenarios such as wire harness production lines and quality inspection centers, and serves as core testing equipment for crimping quality control.

FEATURES

1. Bilingual operation interface: One-click switch between Chinese and English, adapting to the operating habits of users in different regions.

2. Multi-unit switching: Supports force unit conversion among Newton (N), kilogram (kg) and pound (lb), meeting the requirements of different domestic and international test standards.

3. Real-time data visualization: Real-time display of tensile force during the test; automatically locks the peak force after the test and generates a complete force-displacement curve, intuitively presenting the stress change process of the crimping joint.

4. Holding force test mode: Supports special holding force test, with customizable target holding force value and holding duration; automatically judges and outputs test results after completion.

5. Wide-range speed regulation: Stepless adjustment of test speed from 0 to 999mm/min, supports preset as default startup parameter, adapting to test standards of products with different specifications.

6. Fully automatic clamping system: Automatically clamps samples during testing and returns the fixture automatically after testing. No manual operation is required throughout the process, which greatly improves the efficiency of batch testing and avoids manual operation errors.

7. Standard data interface: Equipped with USB communication interface, supporting data export and peripheral connection.

8. MES system integration: Automatically uploads test data to MES production management system after testing, helping to realize informatization and traceability management of production quality data.

9. Flexible parameter configuration: Built-in visual parameter setting interface, all system parameters can be flexibly adjusted according to test requirements, adapting to various inspection scenarios.

TECHNICAL SPECIFICATIONS
