WS-3F/WS-3FN semi-automatic thin cable strippers with pneumatic-electric control, 3-25mm stripping, fit AWG32-AWG16; WS-3FN features 3-10mm auto wire twisting for tin dipping.

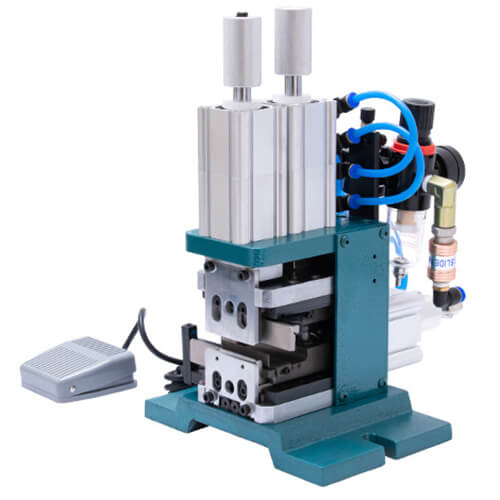

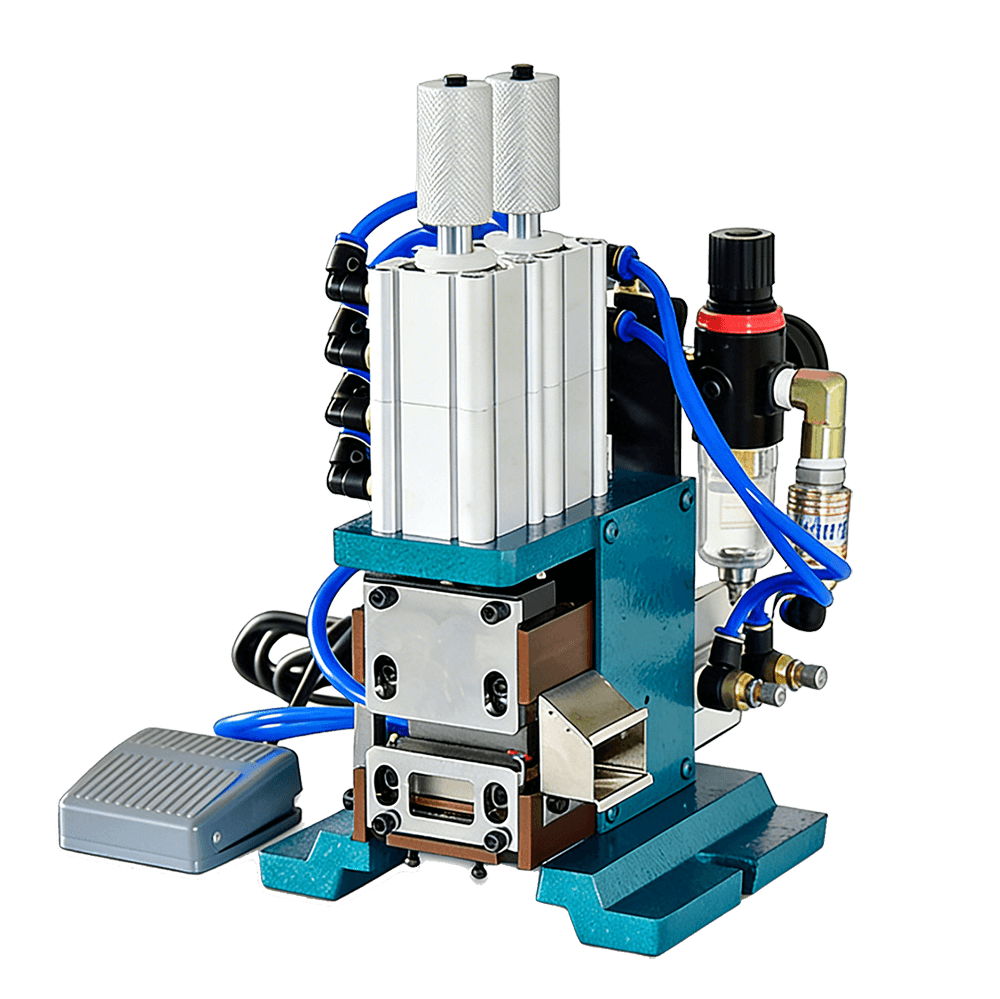

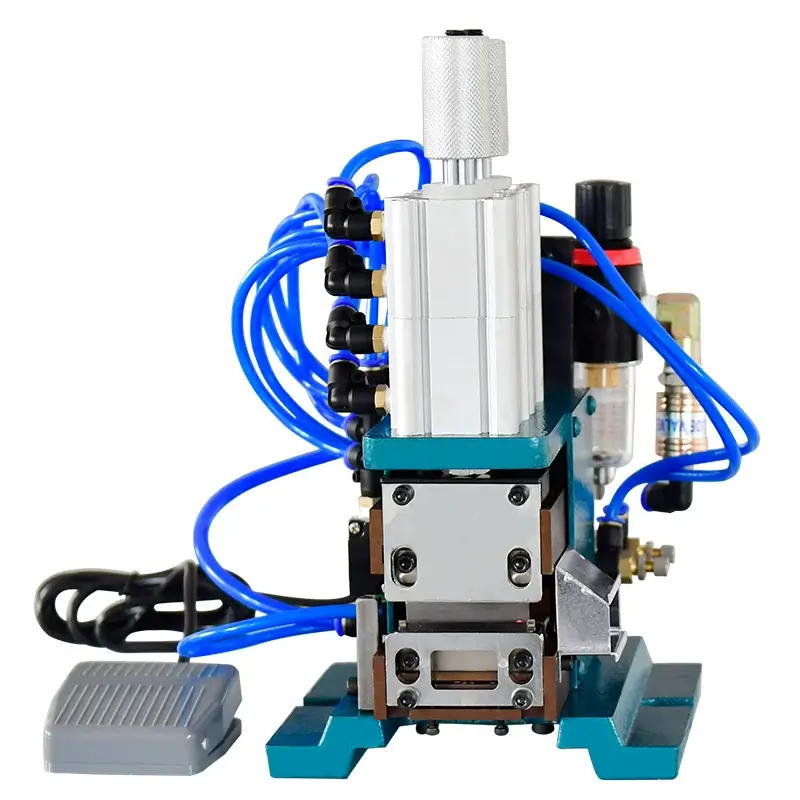

WS-3F/WS-3FN Semi-Automatic Wire Stripping Machines
PRODUCT DESCRIPTION
Both the WS-3F and WS-3FN are semi-automatic wire stripping equipment specially designed for thin cable processing. The two models share highly consistent core structures and basic functions, and the WS-3FN is upgraded with an automatic wire twisting unit on the basis of the WS-3FN, which automatically twists the wire cores after stripping, facilitating subsequent wire harness processing procedures such as tin dipping. Adopting a pneumatic-electric control system and a wire-clamping stripping cylinder structure, both machines support simultaneous stripping of multiple cables with precise parameter adjustment and easy operation. They serve as an efficient processing solution for thin cables including computer core wires, insulated wires, telephone wires and ribbon cables.
PRODUCT FEATURES

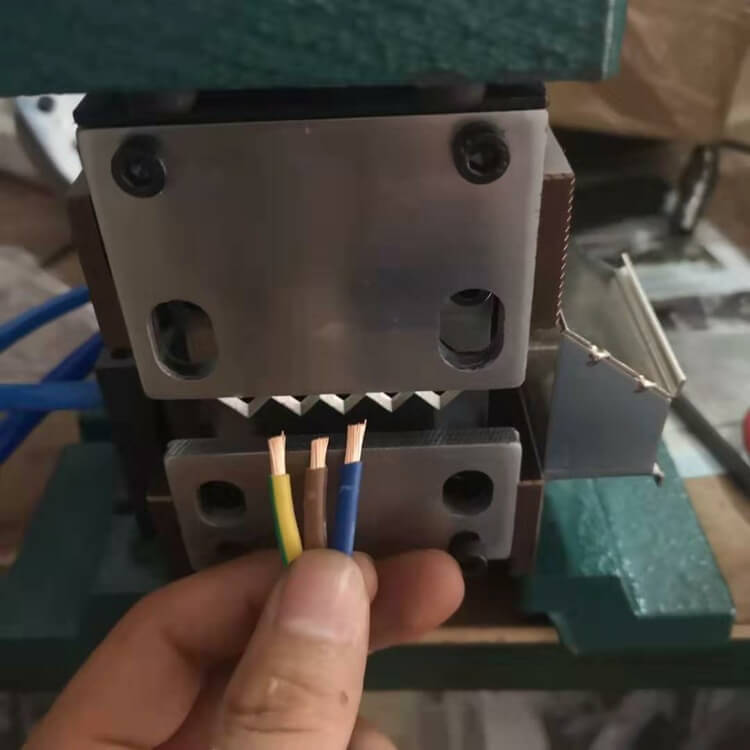

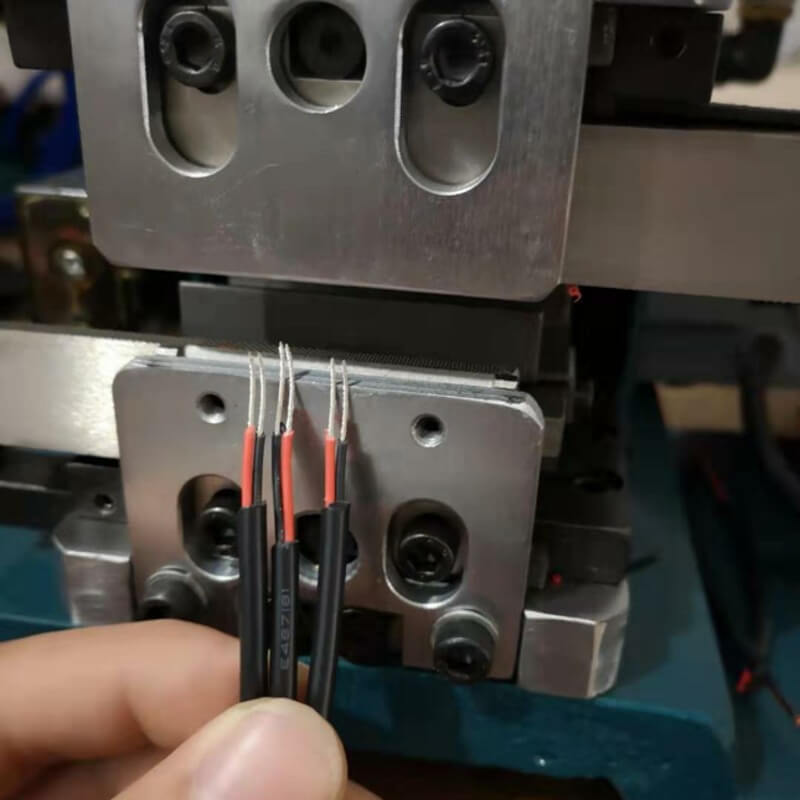

Efficient multi-wire simultaneous processing: Supports simultaneous stripping of multiple thin cables, greatly improving the production efficiency of wire harness processing and adapting to mass processing needs.
Precisely adjustable parameters: The stripping length can be flexibly adjusted within the range of 3-25mm, compatible with wire gauges of AWG32-AWG16, meeting the processing requirements of different thin cables.
Freely adjustable clamping tightness: The cable clamping tightness can be adjusted as needed via upper and lower nut cutters, adapting to thin cables of different materials and characteristics and avoiding core damage during stripping.
Stable and reliable pneumatic-electric control: Equipped with a combined pneumatic and electric control system, it features simple operation and stable equipment performance, reducing the difficulty of manual operation.
Compact, portable and easy to place: The small and light body occupies little workshop space and can be flexibly arranged in the production line, suitable for various workstation scenarios.
Exclusive wire twisting function for WS-3FN: Added with an automatic wire twisting unit with a twisting length of 3-10mm, it automatically twists the wire cores after stripping, simplifying subsequent processes such as tin dipping and further improving processing continuity.
TECHNICAL SPECIFICATIONS
| Parameter | WS-3F | WS-3FN |
|---|---|---|
| Machine Type | Semi-automatic Wire Stripping Machine | Semi-automatic Wire Stripping and Twisting Machine |
| Stripping Length | 3-25mm | 3-25mm |
| Twisting Length | N/A | 3-10mm |
| Applicable Wire Gauge | AWG32-AWG16 | AWG32-AWG16 |
| Working Air Pressure | 0.5-0.7Mpa | 0.5-0.7Mpa |
| Power Supply | AC220V/50Hz | AC220V/50Hz |
| Dimensions | 330×190×270mm | 330×240×290mm |
| Net Weight | 12kg | 15kg |
| Control Mode | Pneumatic-electric Control | Pneumatic-electric Control |
| Core Structure | Wire-clamping stripping cylinder (adjustable clamping tightness) | Wire-clamping stripping cylinder (adjustable clamping tightness) + Automatic wire twisting unit |

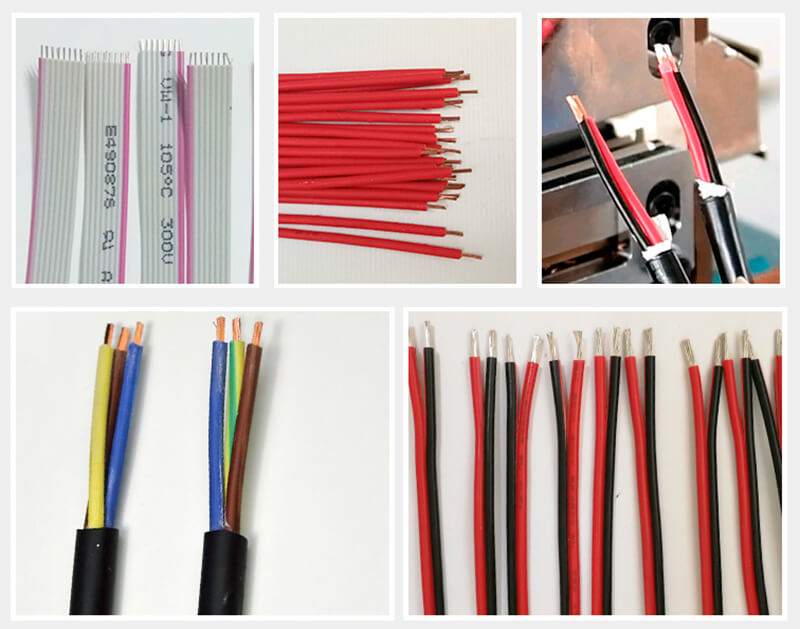

| Applicable Cables | Thin cables such as computer core wires, insulated wires, telephone wires, ribbon cables, etc. | Thin cables such as computer core wires, insulated wires, telephone wires, ribbon cables, etc. |
