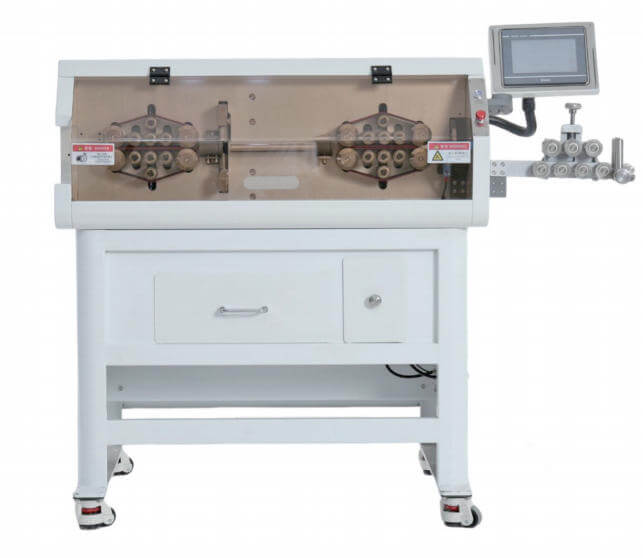

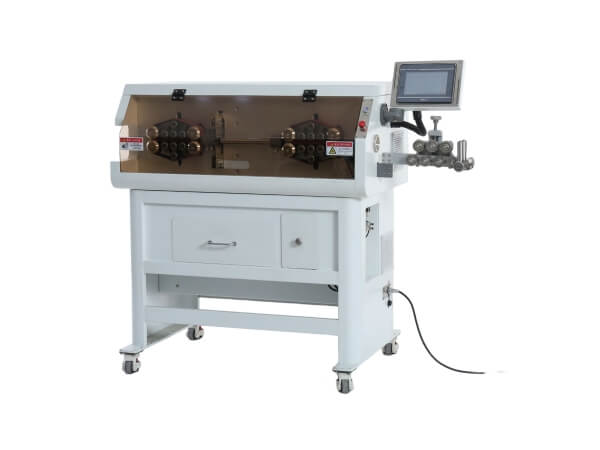

WS-9150 Automatic Wire Cutting Stripping Machine
PRODUCT DESCRIPTION
The WS-9150 is a high-performance, fully automatic computerized wire processing machine that integrates precise cutting and multi-function stripping. It features an advanced servo and stepper drive system and a user-friendly 7-inch true-color touchscreen for intuitive operation. Designed to handle a wide range of conductors from 10 to 150 mm², including single-core wires, multi-core cables, and shielded wires, it is a reliable solution for efficient and high-precision wire harness processing.
FEATURES
High-Precision Processing: Utilizes a "24-roller servo/stepper drive" and "belt feeding" system to ensure mark-free and scratch-free wire conveyance. The cutting length tolerance is within ±0.002×L, guaranteeing accurate fixed-length cutting.
Versatile Stripping: Supports both full-strip and semi-strip modes for wire front and rear ends, meeting complex wire processing requirements.
Wide Compatibility: Handles wire sizes from 10 to 150 mm² with a maximum outer diameter of Φ27mm, suitable for various materials including PVC.
Efficient Production: Theoretical maximum productivity reaches 800 cycles/hour. Combined with large program storage capacity (e.g., 99 sets), it allows quick switching between different wire processing programs, significantly boosting batch operation efficiency.
Reliability & Durability: The core cutting blades are made of high-quality imported high-speed steel, ensuring long-term sharpness, stability, and low failure rates.
TECHNICAL SPECIFICATIONS
Model | WS-9150 |
Wire Types | Single-core, Multi-core Cable, Shielded Cable, PVC, etc. |
Display | 7-inch True-color Touchscreen |
Stripping Range | 10 - 150 mm² |
Max. Wire Diameter | Φ27 mm |
Cutting Length | 1mm - 99999.99mm |
Length Tolerance | ≤ 0.002 × L (L = Cutting Length) |
Stripping Length | Front strip: 1-800mm Rear strip: 1-400mm |
Blade Material | High-quality High-Speed Steel |
Drive Method | 24-roller Drive (Stepper Feeder, Servo Cutter) |
Feeding Method | Belt feeding, no indentations or scratches |
Productivity | 800PCS/Hour (depending on length and wire size) |
Roller Lifting Method | Stepper Motor Lifting |
Guide Tube Swinging | Pneumatic Cylinder |
Power Supply | AC 220V 50/60Hz 2.5KW |
Air Supply | 0.5-0.8Mpa |
Weight | 280kg |
