AC-100S Belt-Feed Automatic Cutting Machine

PRODUCT DESCRIPTION

The AC-100S Belt-Feed Automatic Cutting Machine utilizes a dedicated motion control system to perform precise and stable fixed-length cutting on a wide variety of industrial materials. Driven by a high-speed stepper motor, it ensures accurate length control while offering adjustable feed length and speed to meet demanding, high-precision production requirements.

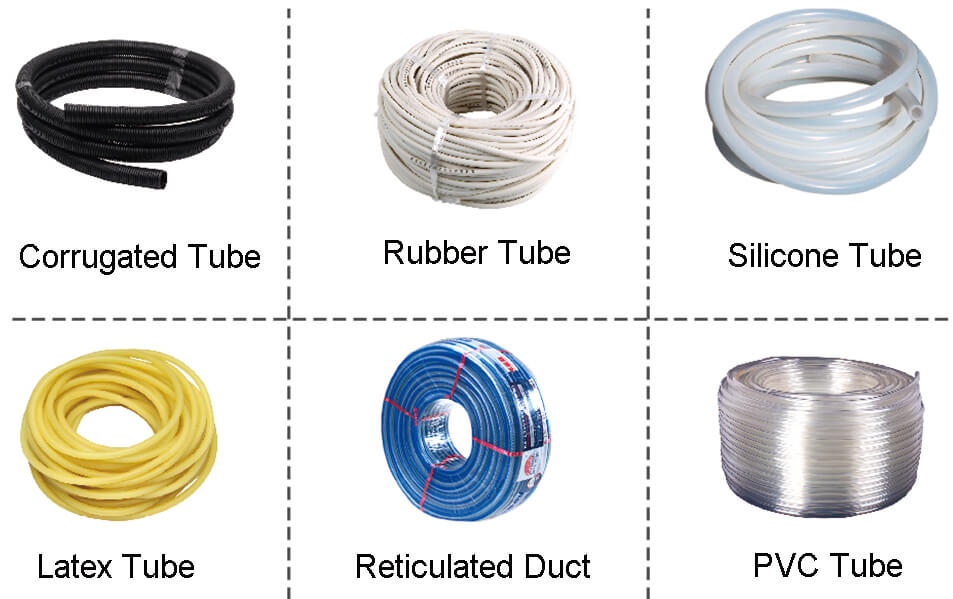

Specifically engineered for elastic materials such as silicone and latex tubes, as well as crush-prone materials like corrugated conduits, the AC-100S belt-feed model delivers flat cuts, high precision, and non-damaging processing.

FEATURES

1. Fully automatic microcomputer control with adjustable cutting speed from 1 to 99 levels.

2. Features a high-definition LED display for clear visibility of batch pause, length compensation, one-key reset, and other functions, ensuring simple and convenient operation.

3. Equipped with durable SKD-11 tool steel blades that provide clean, flat cuts and maintain sharp edges.

4. Includes various manual operations such as total quantity setting, batch setting, and adjustable batch pause time for convenient debugging.

5. Cutting length is adjustable from 1 mm to 99.9 meters; customization for longer lengths are available upon request.

TECHNICAL SPECIFICATIONS
