HY-GEK50 pneumatic wire grommet expander is professionally used to uniformly and non-destructively expand the inner hole of rubber grommets, eyelets, etc., allowing wires, cables, or hoses to pass through easily.

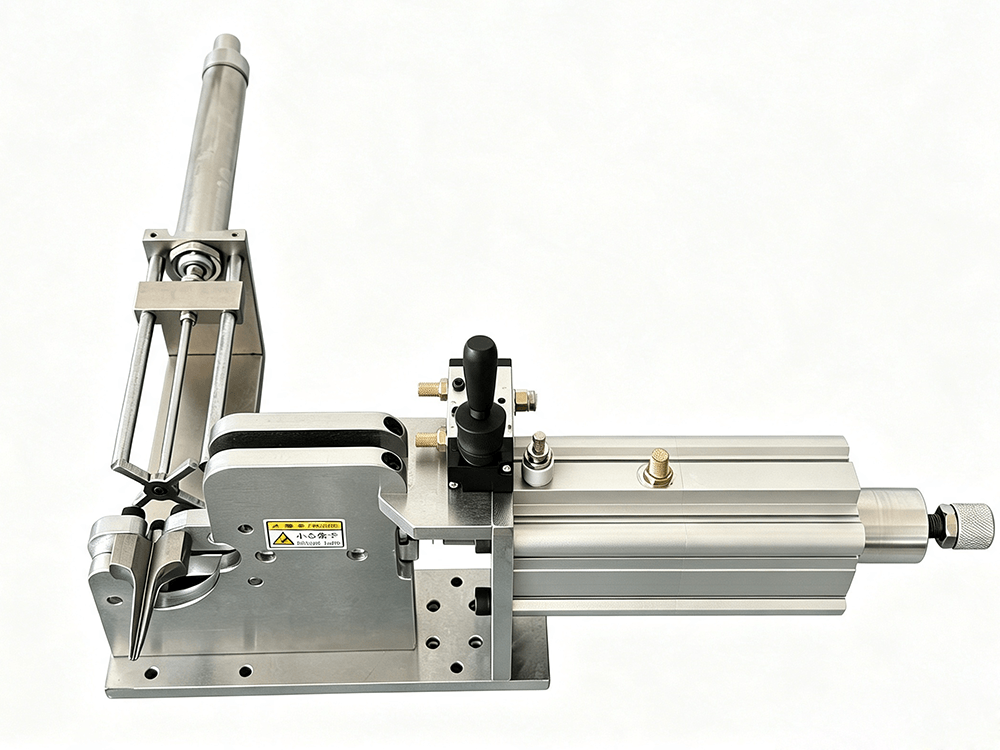

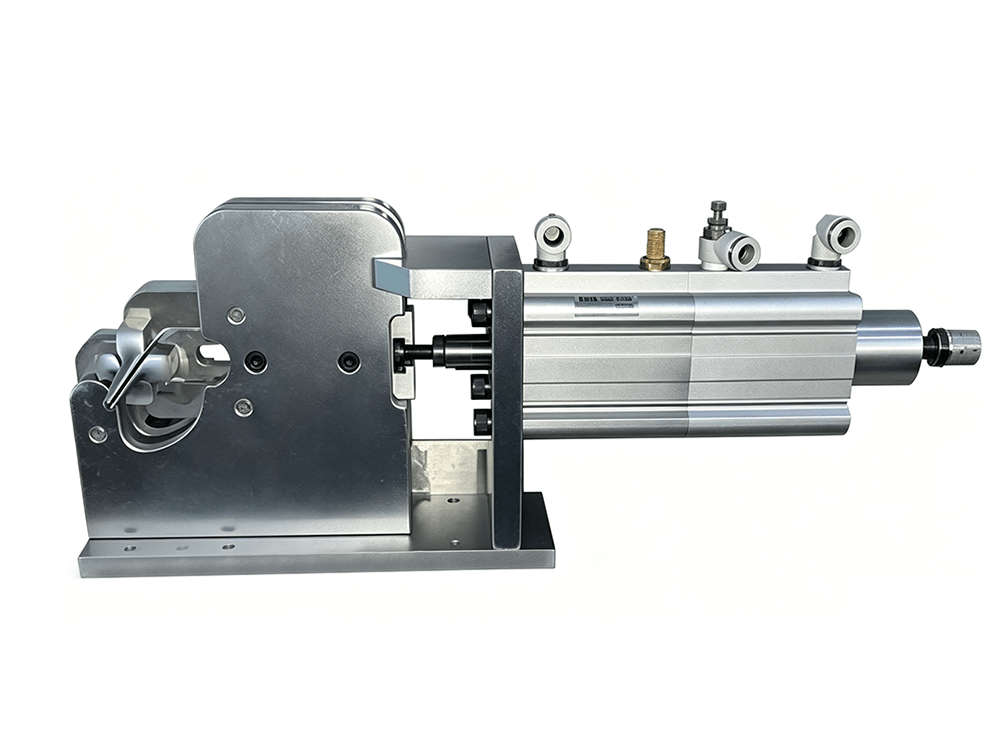

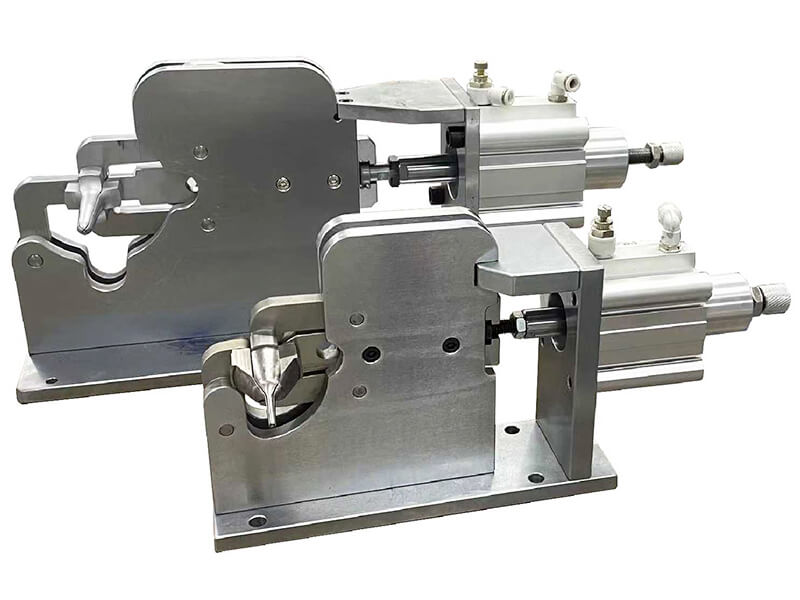

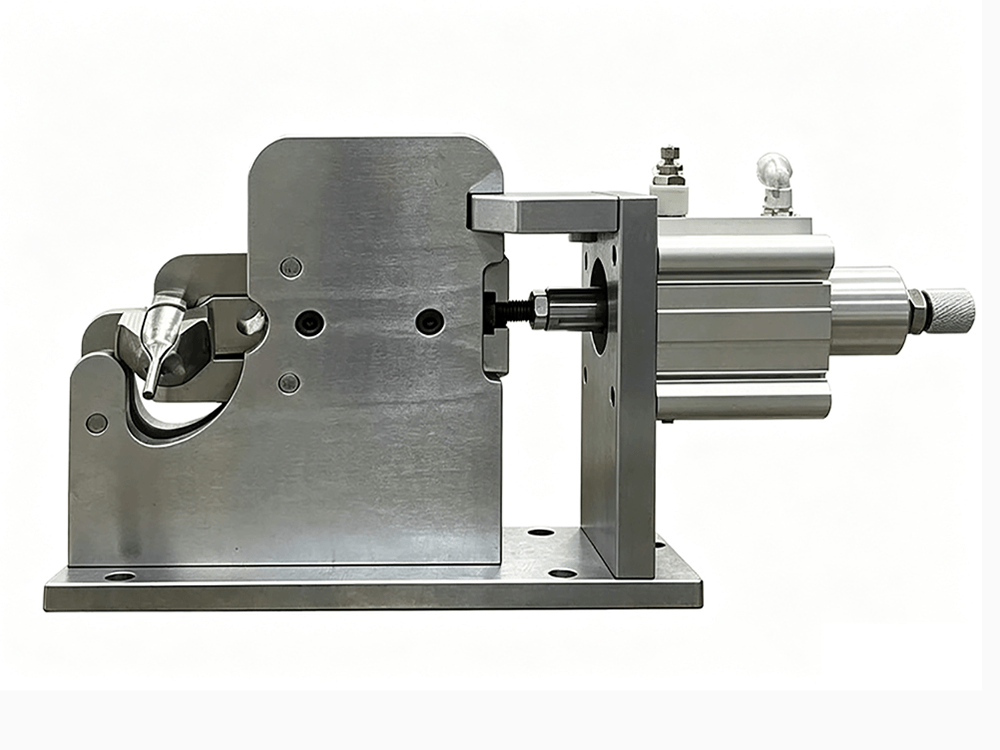

HY-GEK50 Series Pneumatic Grommet Expander
PRODUCT DESCRIPTION
The HY-GEK50 Series pneumatic grommet expander is professionally used to uniformly and non-destructively expand the inner hole of rubber grommets, eyelets, etc., allowing wires, cables, or hoses to pass through easily. HY-GEK50 series expander has a maximum expansion diameter of 50mm.
Integrated "Pull-off unit" is a highly valuable upgrade. After expansion and threading, this unit will cleanly eject the grommet assembly from the tool prongs. Its "pull-off" unit is equipped with a manual control lever for activation.
TECHNICAL SPECIFICATIONS
Model | HY-GEK50 | HY-GEK50P | HY-GEK50S | HY-GEK50SP |
“Pull-off” Unit | No | Yes | No | Yes |
Cylinder | Single cylinder | Single cylinder | Dual-cylinder | Dual-cylinder |
Expansion Diameter | 4-50mm | 4-50mm | 4-50mm | 4-50mm |
Weight | 12kg | 16kg | 14kg | 18kg |
Dimensions | 450x140x200mm | 450x550x200mm | 535×140×200mm | 535x550x200mm |
Air Supply | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa | 0.3-0.7Mpa |
