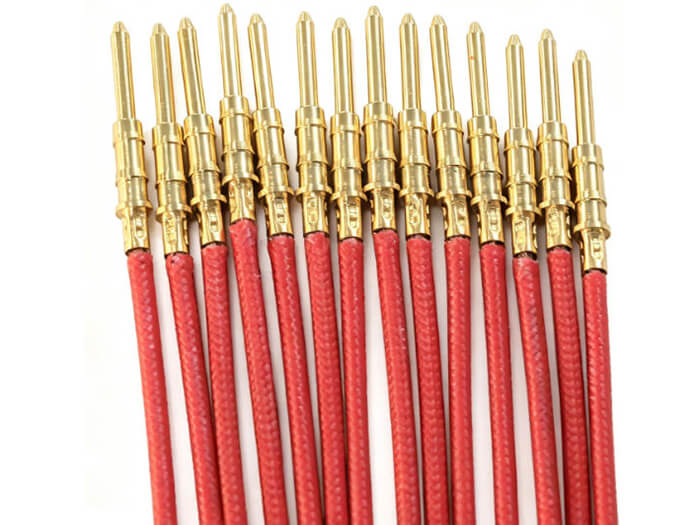

This machine is specially designed for aviation pin terminals, suitable for wire harness processing of 0.3–6.0mm² cables. It auto-starts once wire is inserted, integrating automatic stripping, wire twisting, terminal feeding and servo crimping in one cycle.

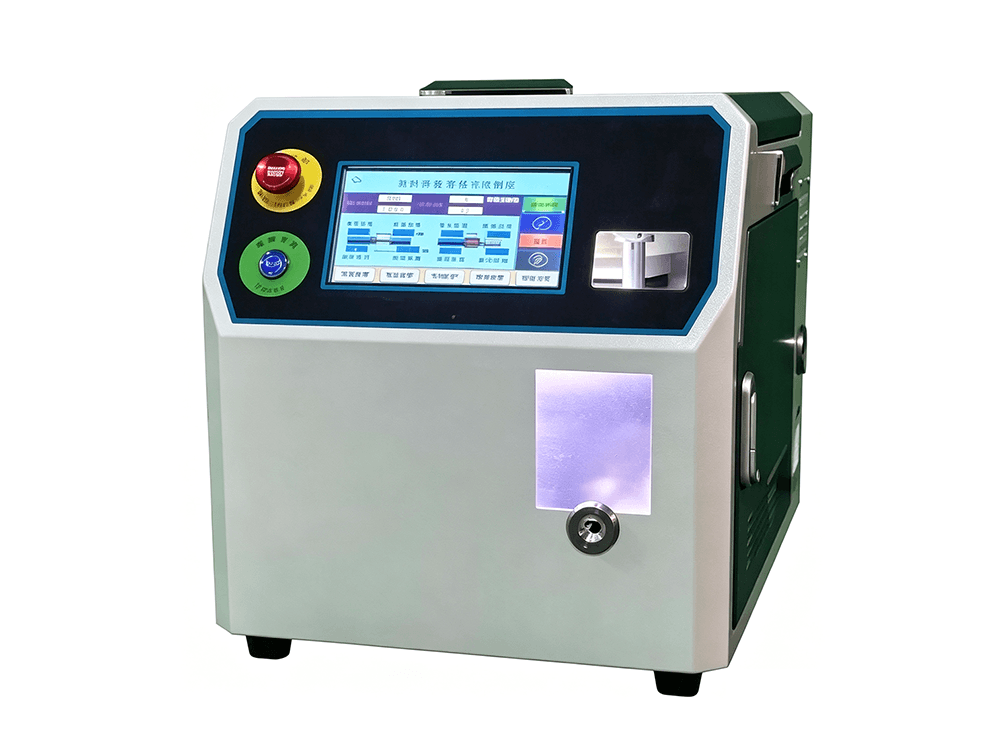

TC-AP6 Aviation Pin Terminal Crimping Machine
PRODUCT DESCRIPTION
This machine is specially designed for aviation pin terminals, suitable for wire harness processing of 0.3–6.0mm² cables.
It auto-starts once wire is inserted, integrating automatic stripping, wire twisting, terminal feeding and servo crimping in one cycle.
Closed cabinet with visible observation window for real-time operation viewing. Bulk terminals are fed by vibratory bowl feeder. Combined servo crimping, servo twisting, electric stripping and electric wire clamp with pneumatic structure for easy operation. Equipped with 7-inch HMI touch screen; wire insertion depth is electrically adjustable, all process parameters can be saved and recalled with one click.
PRODUCT FEATURES
1. Compatible with various terminal sizes, no frequent crimp die replacement needed
2. 7-inch HMI touch screen for visual parameter setting, saving & recalling
3. Fool-proof design to prevent reverse wire and bad twisting during stripping & twisting
4. Dual trigger modes: auto-start by wire detection, optional foot pedal for manual operation
5. Real-time terminal presence detection with auto alarm for missing terminals
6. Servo crimping system automatically matches required crimp force for different terminals

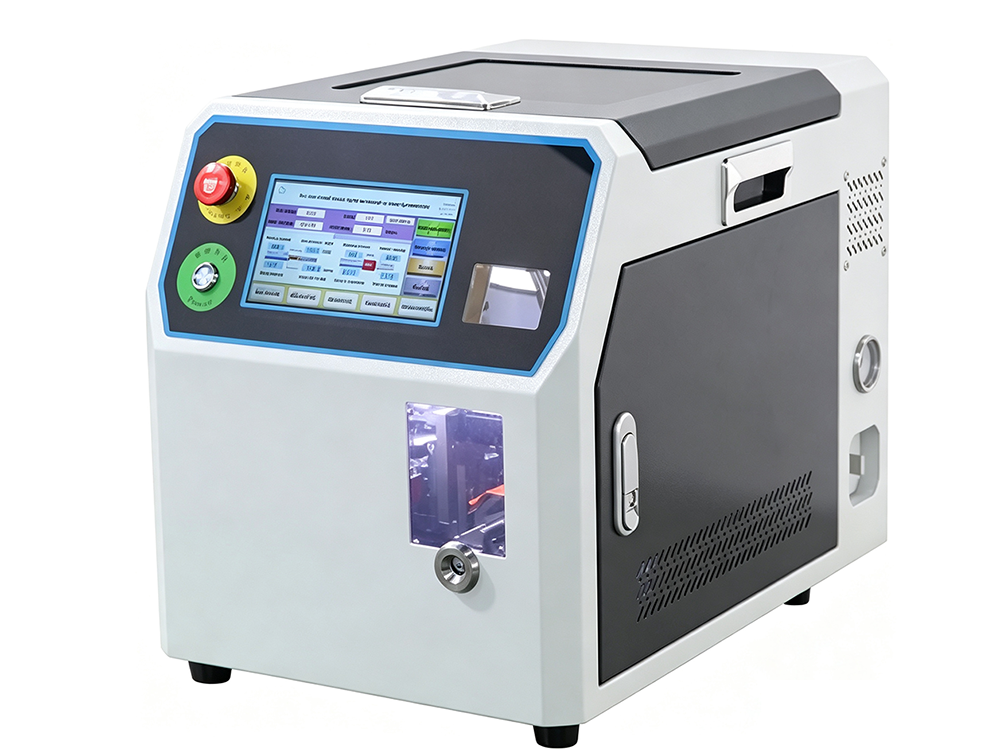

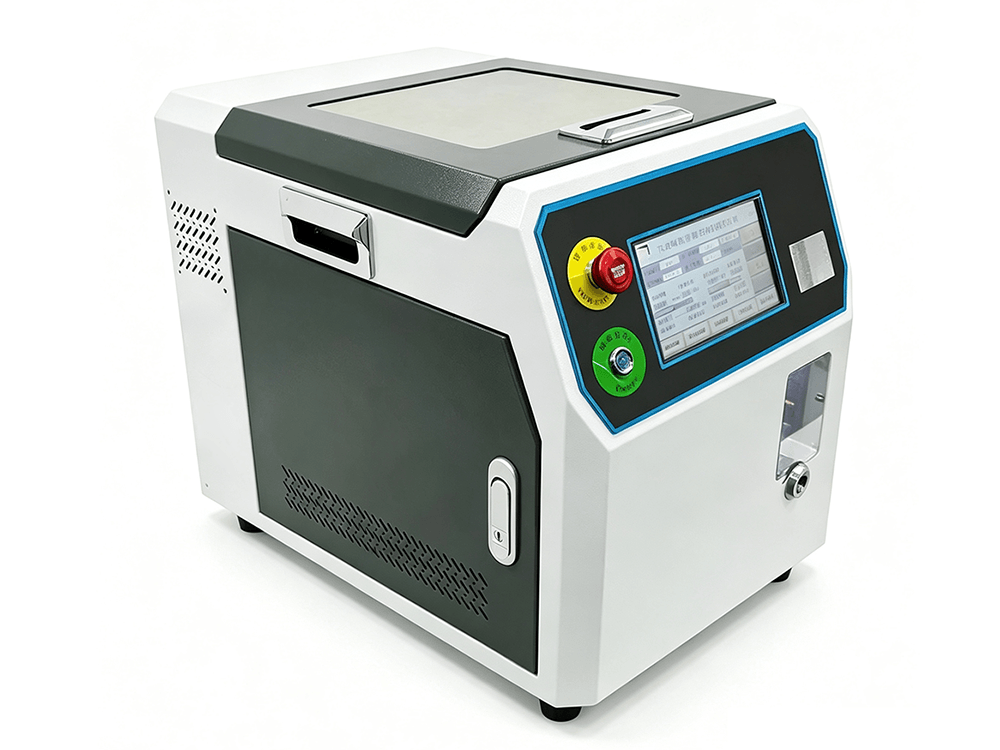

7. Closed cabinet with viewing window to monitor running status clearly
TECHNICAL SPECIFICATIONS
Model |
|
Cycle Time | 3.2 seconds per pc |
Applicable Wires | BVR, RV multi-strand wires: 0.3/0.5/0.75/1.0/1.5/2.5/4.0/6.0mm² |
Stripping Length | 5–30mm |
Terminal Feeding | Vibratory bowl feeder, adjustable to fit multiple terminals |
Crimp Type | 4-point servo crimp, customizable crimp points |
Crimp Force | 1.5T servo crimp, electronic fine-tuning of crimp height |
Control System | 7-inch HMI touch screen, electric & pneumatic control |
Power Supply | Single phase AC220V/50Hz, 10A |
Internal Power | DC24V, DC30V, AC30V |
Total Power | 1500W |
Working Air Pressure | 0.5–0.6Mpa, clean, dry and stable air supply required |
Overall Dimension | W360mm × L520mm × H425mm |
Net Weight | 62KG |
Detection Function | Terminal presence monitoring & error alarm |
Operation Mode | Auto trigger by wire insertion, optional foot pedal |
Model Change | Replace matching fixtures and adjust vibratory bowl manually for different terminals |
