The WS-DF8 is a professional handheld electric tool designed for removing enamel insulation from the ends of enameled wires. It integrates a variable-speed motor and a precision stripping blade into one compact unit. Lightweight and easy to operate, it strips insulation quickly and efficiently without damaging the copper conductor.

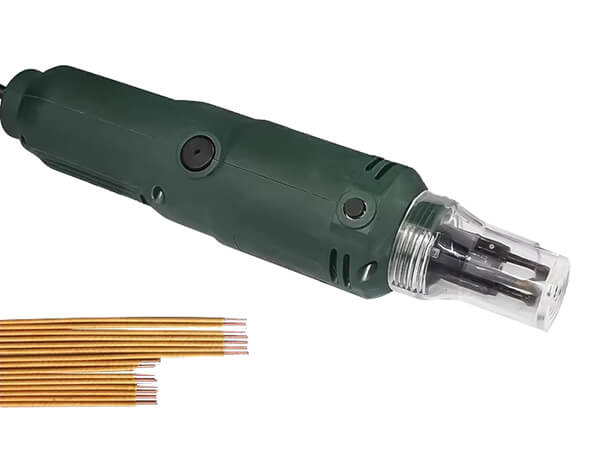

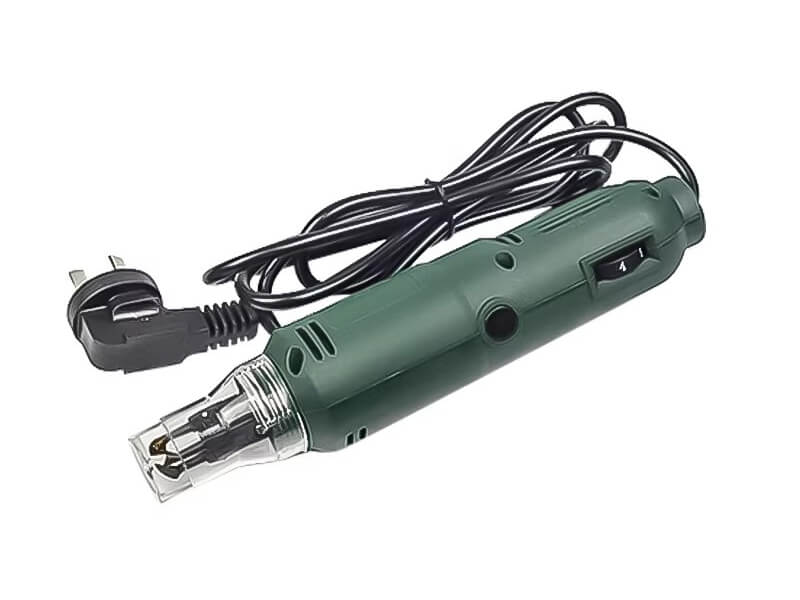

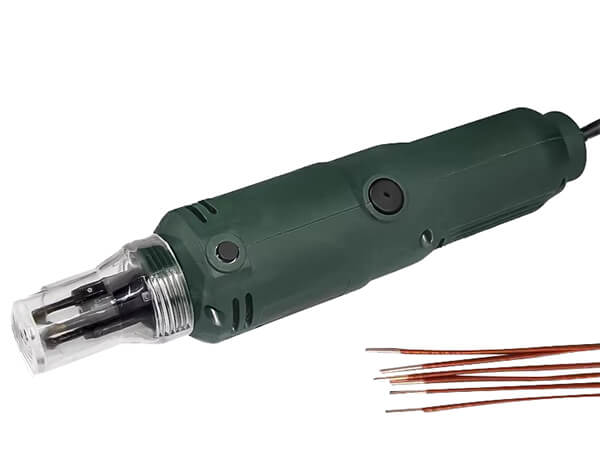

WS-DF8 Handheld Electric Enameled Wire Stripper
PRODUCT DESCRIPTION
The WS-DF8 is a professional handheld electric tool designed for removing enamel insulation from the ends of enameled wires. It integrates a variable-speed motor and a precision stripping blade into one compact unit. Lightweight and easy to operate, it strips insulation quickly and efficiently without damaging the copper conductor, making it an ideal auxiliary tool for motor winding, electronic component soldering, wire harness processing, and similar applications.
FEATURES
High-Efficiency Stripping: Speed up to 10000r/min for instant enamel removal and improved productivity
Precise Control: Electronically adjustable speed to suit different wire diameters and process requirements
Lightweight & Ergonomic: Weighs only 0.75kg, comfortable for prolonged use
Reliable & Durable: Equipped with rotary carbon brushes and a micro momentary switch for low failure rate and long service life
Easy to Use: One-hand operation with a trigger switch, no complex training needed
TECHNICAL SPECIFICATIONS
Item | Specification |
Model | WS-DF8 |
Suitable Wire Diameter | 0.3 ~ 3.0 mm |
Stripping Length | 2 ~ 50 mm |
Rated Voltage | 220V / 50Hz |
Motor Power | 35W |
Speed Range | 0 ~ 10000 r/min (stepless adjustable) |
Net Weight | 0.75 kg |
Dimensions (L×W) | 255 × 55 mm |
Standard Accessory | Claw blade (other blades available for different wire diameters) |
APPLICATIONS
Motor winding, transformer manufacturing, relays, sensors, electronic coils, wire harness processing, and other operations requiring enamel removal from wire ends.
