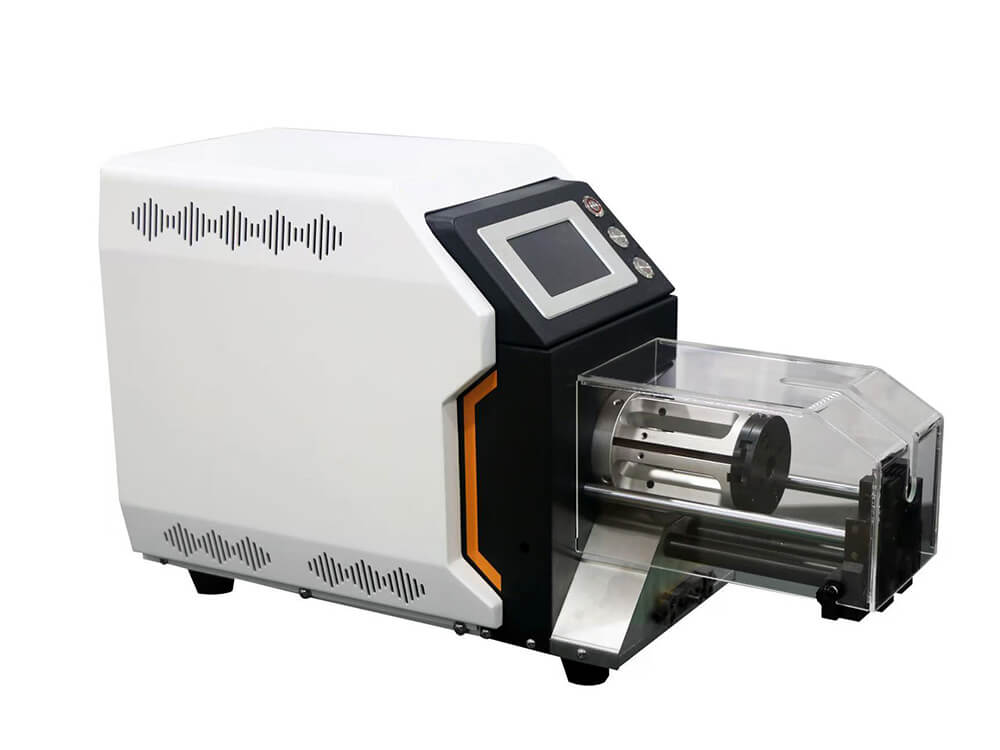

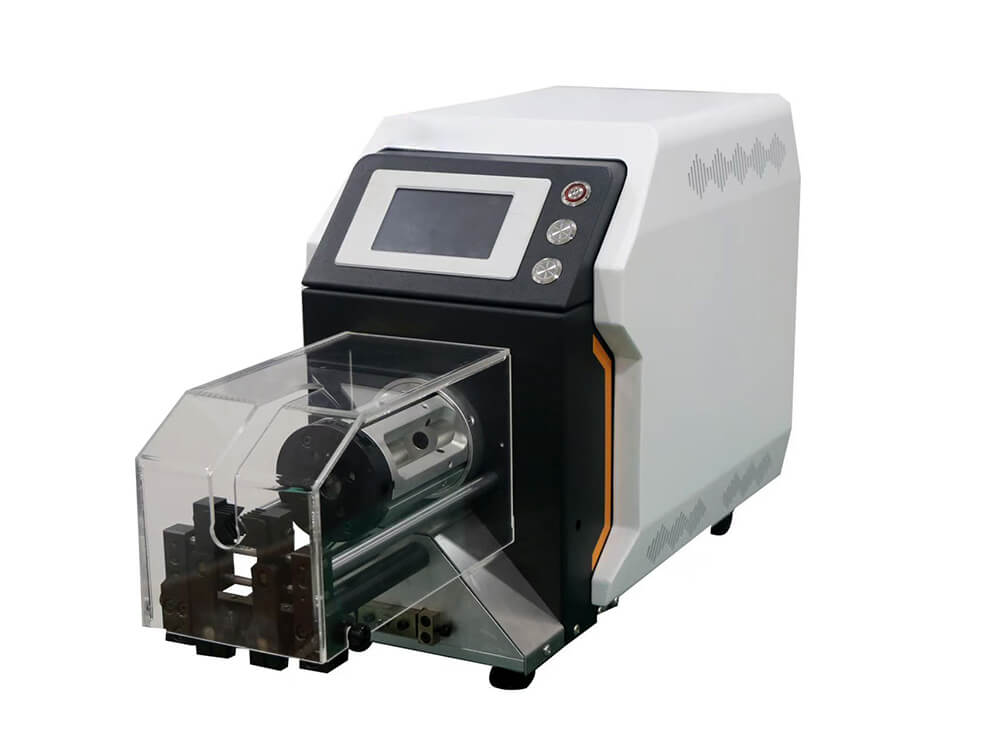

WS-515C Coaxial Wire Stripping Machine
WS-515C is a semi-automatic programmable coaxial cable stripping machine which is suitable for a wide range of wire and cable. It can process the cables of diameter up to 15mm and stripping length up to 100mm.
WS-515C Coaxial Wire Stripping Machine
PRODUCT DESCRIPTION
WS-515C is a semi-automatic programmable coaxial cable stripping machine which is suitable for a wide range of wire and cable. It can process the cables of diameter up to 15mm and stripping length up to 100mm.
TECHNICAL SPECIFICATIONS
Model | WS-515C |
Wire Diameter | 1.5-15mm |
Stripping Length | 0.1-100mm |
Setting Unit | 0.01mm |
Max. Strip Layer | 10 layers |
Drive way | Ball screw drive |
Startup mode | Manual / Pedaling |
Blades Quantity | 4 PCS |
Blade Materials | Tungsten steel |
Power Supply | AC 220V |
Weight | 34kg |
Dimensions | 640*260*375mm |
