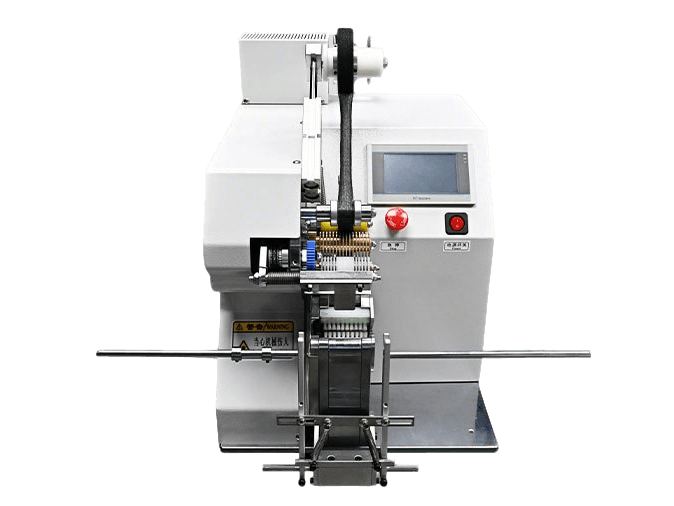

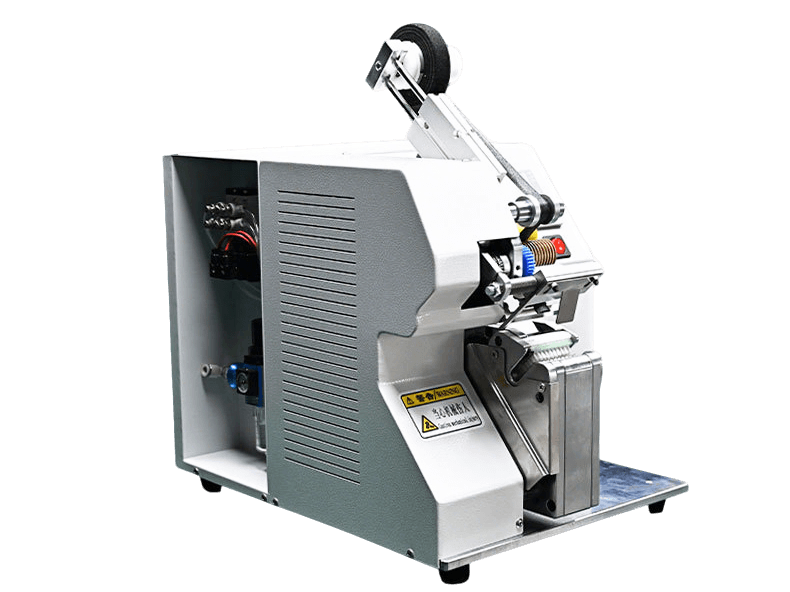

TW-303A Spot-Type Tape Wrapping Machine

PRODUCT DESCRIPTION

The TW-303A Spot-Type Wire Harness Tape Wrapping Machine is a professional tape wrapping equipment designed for automotive, motorcycle, aerospace and industrial wire harness processing. It is mainly used for spot wrapping at wire harness joints, providing insulation protection, marking and strain relief for cables. Replacing manual wrapping work, it significantly improves the consistency and production efficiency of wire harness processing. Equipped with a precision feeding mechanism and intelligent touchscreen control system, it supports compatibility with various tapes and wire sizes, making it an ideal supporting equipment for automated wire harness processing.

FEATURES

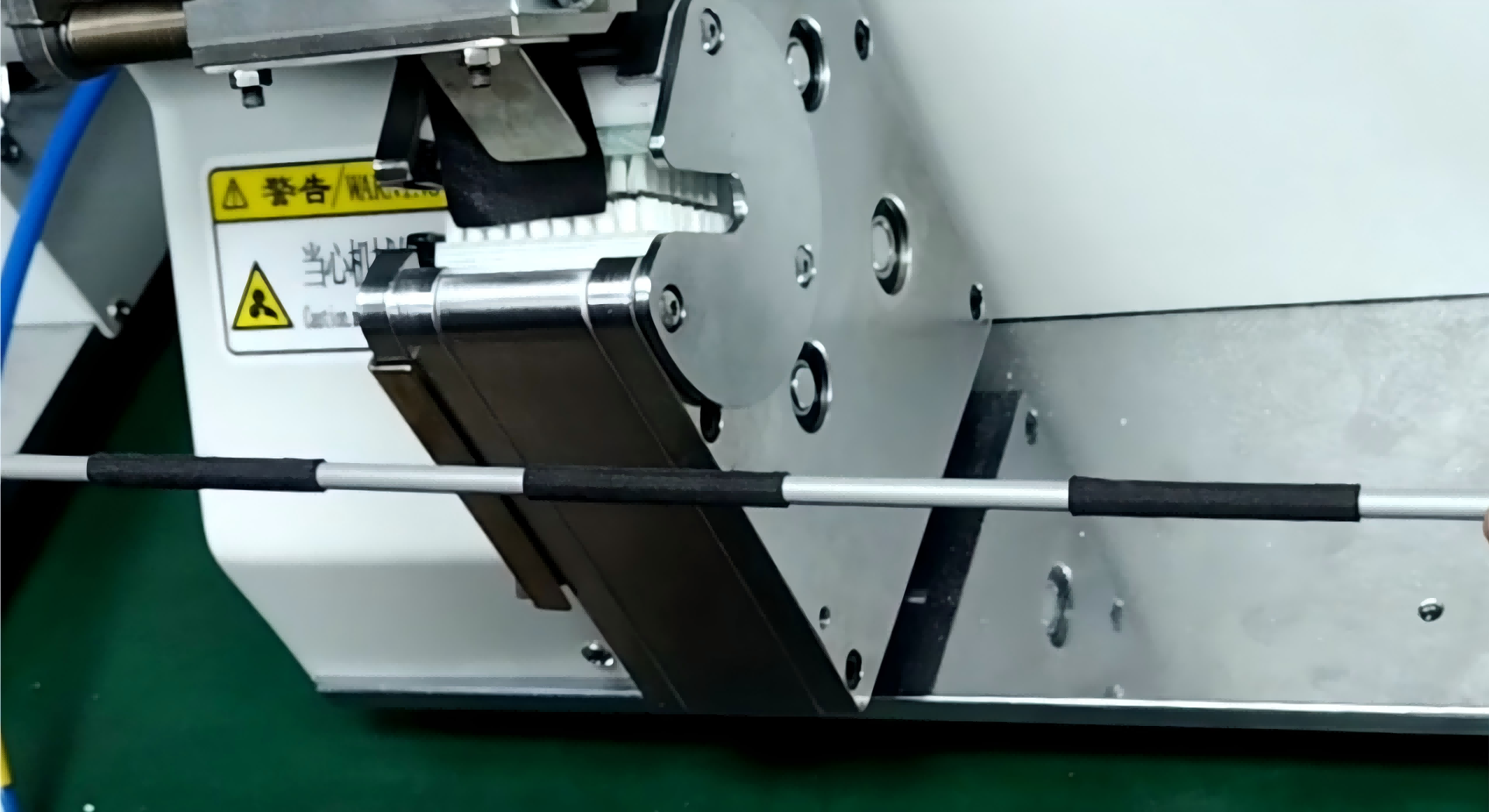

1. Stable Wrinkle-Free Wrapping: With an optimized feeding mechanism, the tape is delivered smoothly, achieving flat, wrinkle-free spot wrapping and ensuring consistent wrapping quality at every harness joint.

2. Flexible Adjustable Parameters: Digital adjustment of wrapping count, length and speed is supported, with the spindle speed adjustable up to 3000 RPM to adapt to different tape materials and processing requirements.

3. Wide Compatibility: It accommodates wire diameters from Φ1mm to 16mm, compatible with common tapes in the industry including high-temperature tape, mica tape, ceramic tape, PVC tape, vinyl tape, cloth tape and flannel tape, meeting various insulation and protection needs.

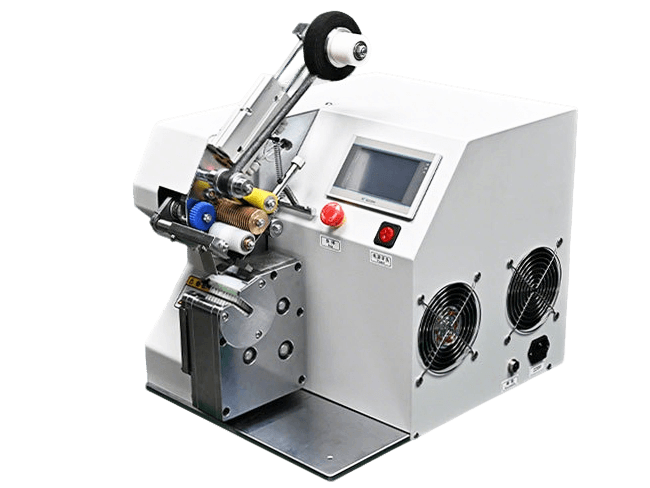

4. Smart & Easy Operation: Equipped with a touchscreen control panel, parameters can be set and saved with one click for intuitive, user-friendly operation and quick parameter recall for mass production.

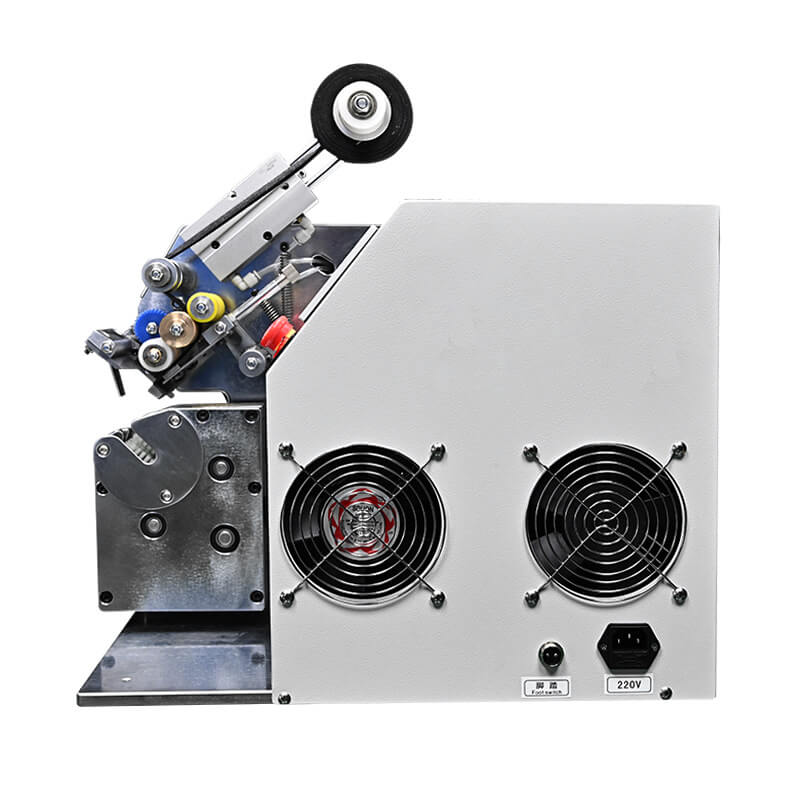

5. Compact & Durable Design: The machine features a compact structure with dimensions of 530×400×510mm and a net weight of 48KG, suitable for production line layout in workshops. Built with durable pneumatic and electrical components, it ensures stable and reliable long-term operation

6. Multi-Scenario Application: Specially designed for spot wrapping of automotive, motorcycle and aerospace wire harness joints, providing insulation, fixing and marking for various complex wire harness processing scenarios.

APPLICATIONS

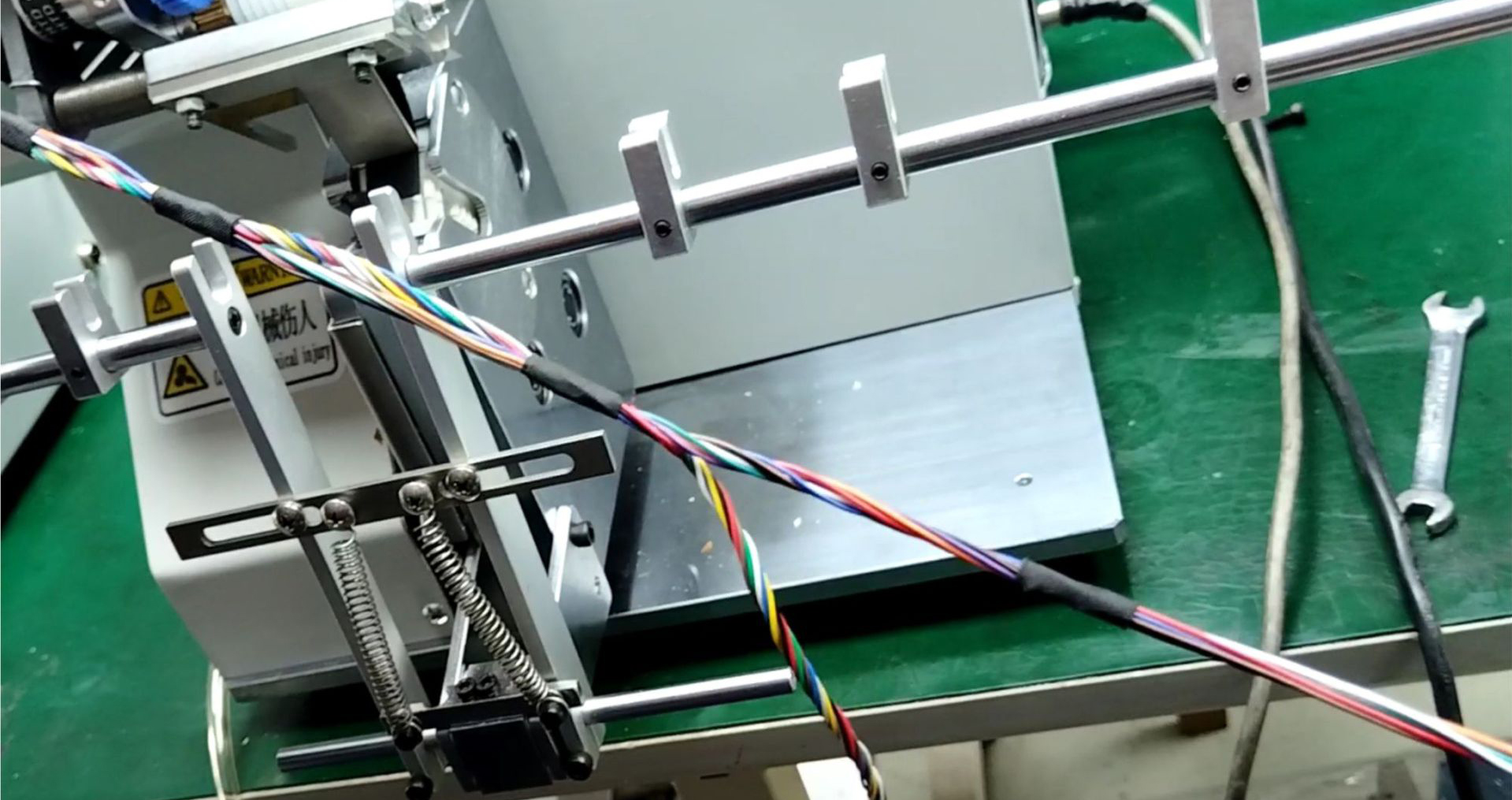

• Insulation and strain relief for automotive and motorcycle wire harness joints

• Marking and protection wrapping for aerospace and industrial cables

• Joint wrapping for electronic harnesses and electrical wires

• Replacing manual spot wrapping to improve wire harness processing consistency and efficiency

TECHNICAL SPECIFICATIONS
